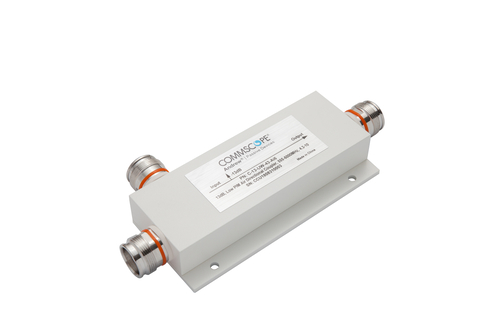

Commscope C-13-UW-43-AI6 | 13 dB, Air Directional Coupler, 5

Specifications Product Classification Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America Product Type Directional coupler General Specifications Device Type Coupler Application Indoor/Outdoor Color White Inner Contact Plating Silver Interface 4.3-10 Female Outer Contact Plating Trimetal Dimensions Height 22 mm | 0.866 in Width 72 mm | 2.835 in Length 159 mm | 6.26 in Electrical Specifications 3rd Order IMD -165 dBc 3rd Order IMD Test Method Two +43 dBm carriers Insertion Loss at Frequency Band 0.5 dB @ 555–6000 MHz Average Power, maximum 300 W Coupling 13 dB Coupling Tolerance ±1.3dB Impedance 50 ohm Isolation at Frequency Band 26 dB @ 4900–6000 MHz | 29 dB @ 3800–4900 MHz | 31 dB @ 2700–3800 MHz | 33 dB @ 555–2700 MHz Operating Frequency Band 555 – 6000 MHz Peak Power, maximum 1 kW Reflected Power, maximum 200 W VSWR at Frequency Band 1.25:1 @ 2700–3800 MHz | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 3800–6000 MHz Mechanical Specifications Coupling Nut Proof Torque 7 N-m | 61.955 in lb Environmental Specifications Operating Temperature -35 °C to +85 °C (-31 °F to +185 °F) Relative Humidity Up to 100% Corrosion Test Method IEC 60068-2-11, 30 days Ingress Protection Test Method IEC 60529:2001, IP67 Packaging and Weights Height, packed 45 mm | 1.772 in Width, packed 98 mm | 3.858 in Length, packed 180 mm | 7.087 in Weight, gross 0.44 kg | 0.97 lb Weight, net 0.38 kg | 0.838 lb Regulatory Compliance/Certifications Agency Classification ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system Maximum Power 1 kW Item Length 7 in Directivity 1.3 dB RF Connectors 4.3-10 Female Maximum VSWR 1.25:1 Qty/ Uom 1 Each Item Width 4 in Item Height 2 in Frequency Range 555-6000 MHz
