G125-FV116F3-04AB000P Harwin Inc. | Connectors, Interconnects | DigiKey

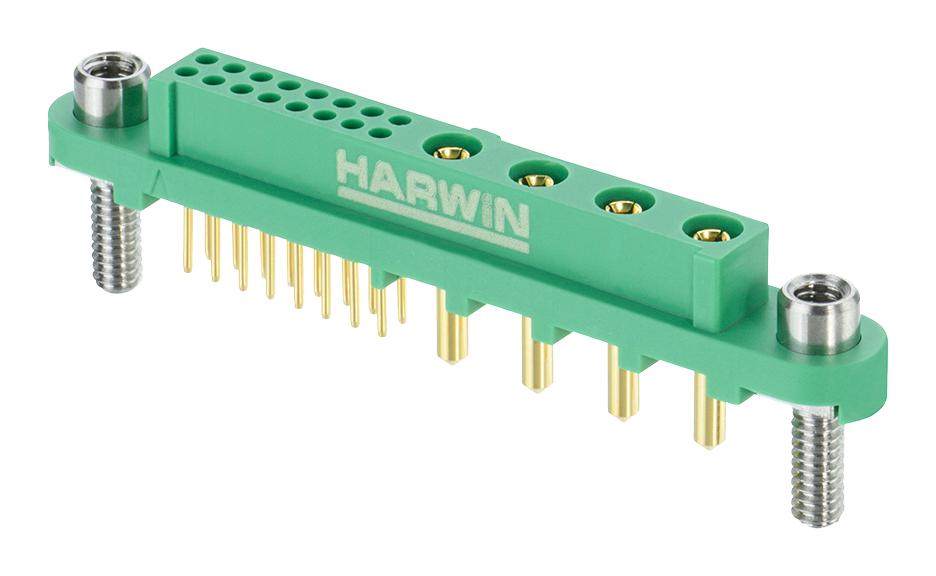

20 (16 + 4 Power) Position Receptacle Connector 0.049\

Harwin Inc. . G125-FV116F3-04AB000P

Attributes

Brand name, Manufacturer name, Manufacturer, MfrHarwin Inc.
DimensionUnitinch
Extra Product NameG125-FV116F3-04AB000P Harwin Inc. | Connectors, Interconnects | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping, qtyInStock0
height0.207
height_AttribInsulation Height
length0.118
length_AttribContact Length - Post
MPNG125-FV116F3-04AB000P
packaging, PackageStrip
SKU17100427
snippet20 (16 + 4 Power) Position Receptacle Connector 0.049\
tierMinQty210
tierMinQty3100
tierPrice168.43000
tierPrice262.79600
tierPrice355.14740
CategoryConnectors, Interconnects
SeriesGecko MT Reverse Fix
Product StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions20 (16 + 4 Power)
Number of Positions LoadedAll
Pitch - Mating, Row Spacing - Mating0.049" (1.25mm)
Number of Rows2
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeScrew Lock
Contact Finish - Mating, Contact Finish - PostGold
Contact Finish Thickness - Mating, Mated Stacking Heights, Ingress Protection, Voltage Rating, Applications, Contact Finish Thickness - Post-
Insulation ColorGreen
Insulation Height0.207" (5.25mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-65?C ~ 150?C
Material Flammability RatingUL94 V-0
FeaturesMating Flange, Mounting Flange, Polarizing Key
Current Rating (Amps)2A, 10A
Insulation MaterialPolyamide (PA4T), Nylon 4T
Contact ShapeCircular
Contact MaterialBeryllium Copper

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key17100427111 @ $68.43, 10 @ $62.80, 100 @ $55.15
Newark63AK166012011 @ $75.50, 25 @ $72.05, 50 @ $70.13, 100 @ $67.83, 250 @ $65.54
Newark65AK544511
