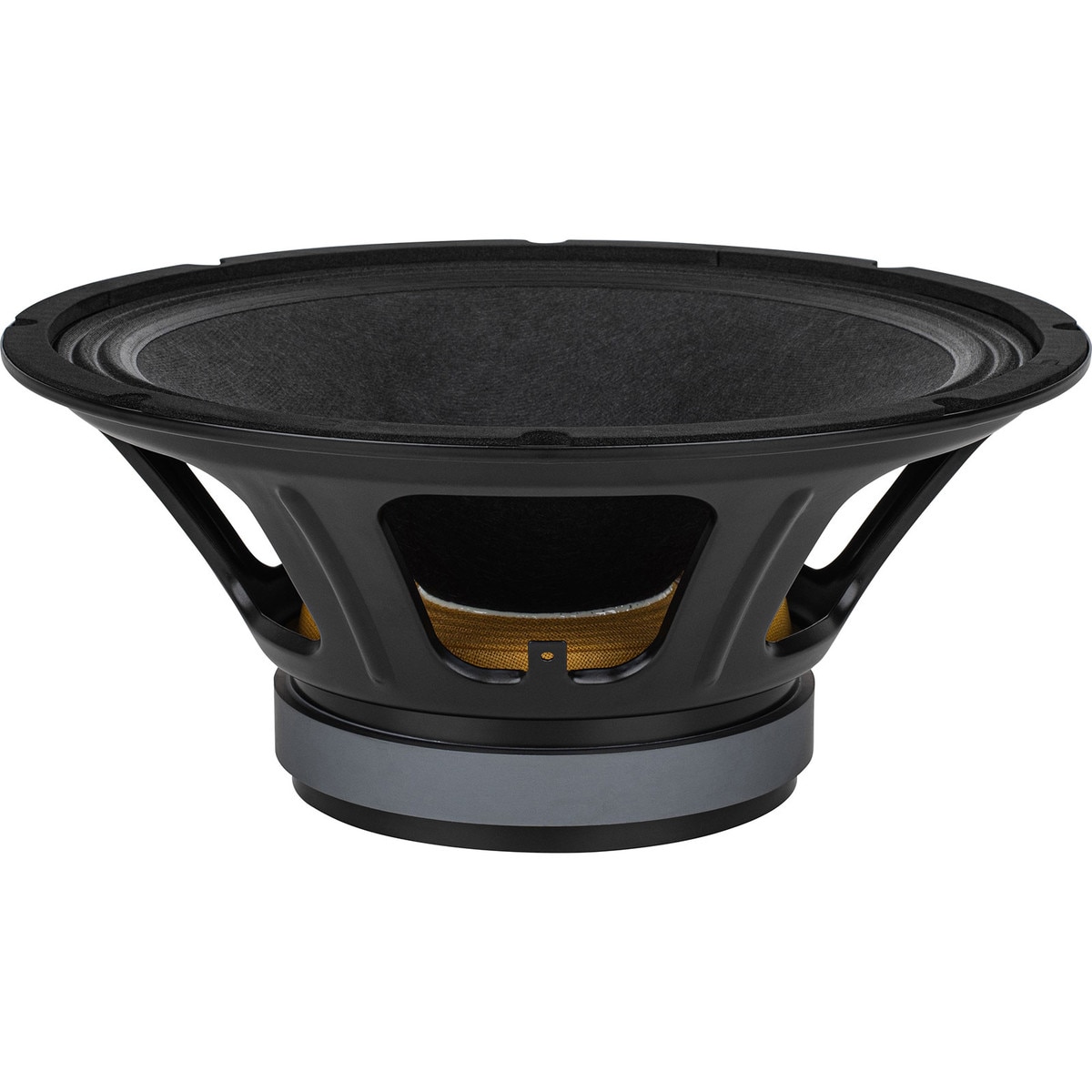

PRV Audio 12W800A 12" Alto Series Professional Woofer 8 Ohm
PRV Audio 12W800A 12" Alto Series Professional Woofer 8 Ohm. Part Number: 294-3169 by PRV Audio.
Gallery
Attributes
| Brand name, Manufacturer name | PRV Audio |
|---|---|
| Manufacturer, Brand | PRV Audio PRV AUDIO |
| DimensionUnit | inch |
| Extra Product Name | PRV Audio 12W800A 12" Alto Series Professional Woofer 8 Ohm |
| UPC | 619620088338 |
| Weight | 12.25 10.8 12.24006478624 |
| WeightUnit | lbs |
| depth, length | 5.22 |
| diameter, height, width | 12.03 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple, Item_package_quantity, Number_of_items, PackageQuantity | 1 |
| MPN, Model, ModelNumber, Model_name, Model_number, Mpns, PartNumber, Part_number, StrippedMpns | 12W800A |
| qtyInStock | Back-Ordered |
| SKU, Part Number | 294-3169 |
| snippet | PRV Audio 12W800A 12" Alto Series Professional Woofer 8 Ohm. Part Number: 294-3169 by PRV Audio. |
| Unit of Measure | Each |
| Nominal Diameter | 12" |
| Power Handling (RMS) | 400 Watts |
| Power Handling (MAX) | 800 Watts |
| Impedance | 8? 8.0 |
| Frequency Response | 55 to 5,800Hz |
| Sensitivity | 97dB 2.83V/1m |
| Voice Coil Diameter | 2.5" |
| Resonant Frequency (Fs) | 49.8Hz |
| DC Resistance (Re) | 5.5? |
| Voice Coil Inductance (Le) | 0.45mH |
| Mechanical Q (Qms) | 11.89 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.47 |
| Compliance Equivalent Volume (Vas) | 3.31ft? |
| Mechanical Compliance of Suspension (Cms) | 0.221mm/N |
| BL Product (BL) | 12.7T?m |
| Diaphragm Mass Inc Airload (Mms) | 46.24g |
| Maximum Linear Excursion (Xmax) | 5.72mm |
| Surface Area of Cone (Sd) | 552cm? |
| Cone Material | Treated Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Kapton? / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 12.03" |
| Baffle Cutout Diameter | 11.6" |
| Depth | 5.22" 5.22 |
| # Mounting Holes | 8 |
| Sealed Volume | 1.25ft? |
| Sealed F3 | 86.4Hz |
| Vented Volume | 2.25ft? |
| Vented F3 | 56.3Hz |
| ASIN, Asin | B098PN83RS |
| AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligible | False |
| Aspect | exception proper_shipping_name transportation_regulatory_class united_nations_regulatory_id |
| Binding | Electronics |
| Bullet_point | 🔈 Frequency Response at -10dB: 55 – 5800 Hz 🔈 Nominal Impedance: 8 Ohms 🔈 Program Power: 800 Watts 🔈 Rated AES Power Handling (RMS): 400 Watts 🔈 Voice Coil Diameter: 2.5 Inch |
| ClassificationId | 10980771 |
| Compatible_with_vehicle_type | Car |
| Control_method | voice |
| Controller_type | Voice Control |
| Currency | USD |
| Diameter, Speaker_size | 12.0 |
| DisplayName | Coaxial Speakers |
| Hazmat | 9 AE_NoAir AU_NoAir BE_NoAir BR_MagnetizedMaterial CA_MagnetizedMaterial CN_MagnetizedMaterial DE_NoAir EG_NoAir ES_NoAir FR_NoAir GB_NoAir IN_MagnetizedMaterial IT_NoAir JP_NoAir MAGNETIZED MATERIAL MX_MagnetizedMaterial NL_NoAir PL_NoAir SA_NoAir SE_NoAir SG_NoAir TR_NoAir UN2807 US_MagnetizedMaterial ZA_NoAir |
| Height | 1024 12.03 34.4932 5.22 500 7.1299999927274 75 |
| Identifier | 0810075520996 810075520996 |
| IdentifierType | EAN UPC |
| IsBrandQuery | True |
| Is_waterproof | FALSE |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | PRV AUDIO 12 Inch Woofer Speaker 12W800A, 800 Watts Program Power, 8 Ohm, 2.5 in Voice Coil, 400 Watts RMS Pro Audio Loudspeaker (Single) |
| Item_package_weight | 5.552 |
| Item_type_keyword | vehicle-speakers |
| Item_weight | 10.8 |
| Keyword | 121208 |
| Label, Publisher, Studio | PRV AUDIO |
| Length | 12.03 13.5799999861484 18.1102 |
| Link | https://m.media-amazon.com/images/I/41RgEaP3pcL._SL75_.jpg https://m.media-amazon.com/images/I/41RgEaP3pcL.jpg https://m.media-amazon.com/images/I/41YjDfar06S._SL75_.jpg https://m.media-amazon.com/images/I/41YjDfar06S.jpg https://m.media-amazon.com/images/I/41hmK6keLJS._SL75_.jpg https://m.media-amazon.com/images/I/41hmK6keLJS.jpg https://m.media-amazon.com/images/I/41lPSk0SfhL._SL75_.jpg https://m.media-amazon.com/images/I/41lPSk0SfhL.jpg https://m.media-amazon.com/images/I/51+WYSlDt3S.jpg https://m.media-amazon.com/images/I/51bn4Vc7vvL.jpg https://m.media-amazon.com/images/I/61oKTA250NS.jpg https://m.media-amazon.com/images/I/61uC6ArzFoL.jpg https://www.amazon.com/gp/bestsellers/electronics https://www.amazon.com/gp/bestsellers/electronics/10980771 |
| List_price | 106.14 |
| Mounting_type | Flush Mount |
| Power_source_type | Corded Electric |
| ProductCategoryId | 10980771 10980881 ce_display_on_website |
| ProductGroup, WebsiteDisplayGroupName | CE |
| ProductType, ProductTypeName | SPEAKERS |
| Product_description | Nominal Diameter: 12" (305 mm) Nominal impedance: 8 Ohms Rated AES Power Handling (RMS): 400 Watts Program Power: 800 Watts Sensitivity 2.83V at 1m: 97 dB Recommended Hi Pass Crossover*: 115 Hz** **For Full Power Handling **12db Per Octave Crossover Frequency Response at -10dB: 55 – 5800 Hz Voice Coil Diameter: 2.5" (65 mm) Voice Coil Wire: CCAW Voice Coil Winding Depth: 16.2 mm Former Material: Polyimide Magnetic Gap Depth: 9.5 mm Frame Material: Stamped Steel Overall Diameter: 12.03" (305.5 mm) Front Mount Baffle Cutout: 11.06" (281 mm) Mounting Depth: 4.96" (126 mm) Overall Depth: 5.22" (132.5 mm) Net Weight: 10.8 Lbs (4.9 kg) |
| Product_site_launch_date | 2021-06-21T20:19:41.335Z |
| Rank | 205030 2339 28 295382 3358 56874 992 |
| Recommended_uses_for_product | For Pro Audio |
| Sku | AFX INC. SKYF15LAJD1SB PRV AUDIO 12W750A |
| Speaker_type | Woofer |
| Speakers_maximum_output_power | 800.0 |
| Supplier_declared_dg_hz_regulation | not_applicable |
| Title | Car Coaxial Speakers Electronics PRV AUDIO 12 Inch Woofer Speaker 12W800A, 800 Watts Program Power, 8 Ohm, 2.5 in Voice Coil, 400 Watts RMS Pro Audio Loudspeaker (Single) |
| Type | Count ean upc |
| URL | https://m.media-amazon.com/images/I/41RgEaP3pcL._SL75_.jpg |
| Unit | centimeters inches kilograms ohm pounds watts |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN PT01 PT02 PT03 |
| Wattage | 400.0 800.0 |
| WebsiteDisplayGroup | ce_display_on_website |
| Width | 1024 12.03 13.3899999863422 34.0106 500 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 294-3169 | 1 | Back-Ordered | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
PRV AUDIO 12 Inch Woofer Speaker 12W800A, 800 Watts Program Power, 8 Ohm, 2.5 in Voice Coil, 400 Watts RMS Pro Audio Loudspeaker (Single)
Brand: PRV AUDIO
Nominal Diameter: 12" (305 mm) Nominal impedance: 8 Ohms Rated AES Power Handling (RMS): 400 Watts Program Power: 800 Watts Sensitivity 2.83V at 1m: 97 dB Recommended Hi Pass Crossover*: 115 Hz** **For Full Power Handling **12db Per Octave Crossover Frequency Response at -10dB: 55 – 5800 Hz Voice Coil Diameter: 2.5" (65 mm) Voice Coil Wire: CCAW Voice Coil Winding Depth: 16.2 mm Former Material: Polyimide Magnetic Gap Depth: 9.5 mm Frame Material: Stamped Steel Overall Diameter: 12.03" (305.5 mm) Front Mount Baffle Cutout: 11.06" (281 mm) Mounting Depth: 4.96" (126 mm) Overall Depth: 5.22" (132.5 mm) Net Weight: 10.8 Lbs (4.9 kg)
Details
- 🔈 Nominal Impedance: 8 Ohms
- 🔈 Rated AES Power Handling (RMS): 400 Watts
- 🔈 Program Power: 800 Watts
- 🔈 Voice Coil Diameter: 2.5 Inch
- 🔈 Frequency Response at -10dB: 55 – 5800 Hz
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | SPEAKERS |
| Model | 12W800A |
| Part number | 12W800A |
| Label | PRV AUDIO |
| Manufacturer | PRV AUDIO |
