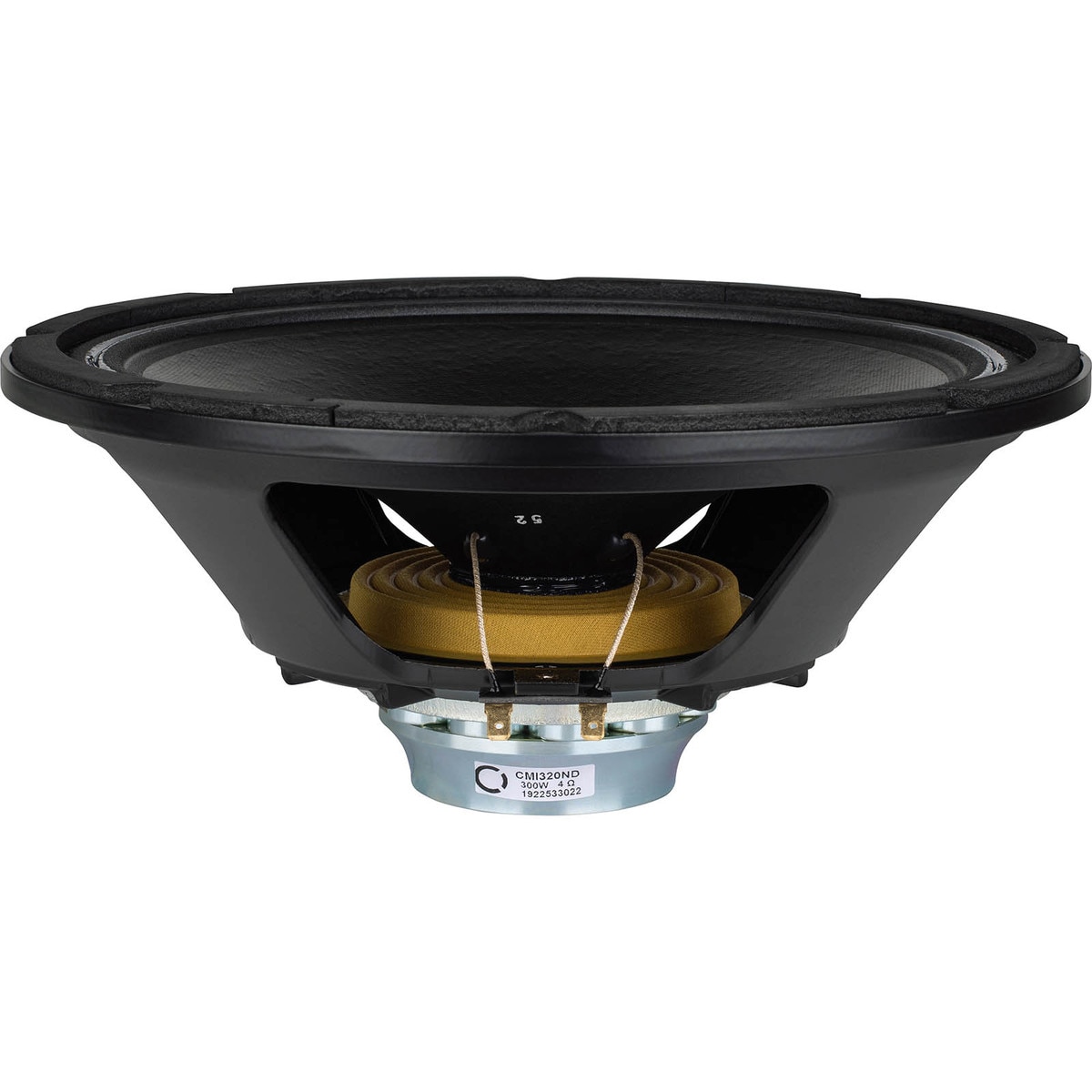

Ciare CMI320ND 12" Neodymium Midbass 4 Ohm

Ciare CMI320ND 12" Neodymium Midbass 4 Ohm - Part Number: 293-134 by Ciare.

Ciare . CMI320ND

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare CMI320ND 12" Neodymium Midbass 4 Ohm
UPC848864073156
Weight7.45
WeightUnitlbs
depth, length5.31
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelCMI320ND
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-134
snippetCiare CMI320ND 12" Neodymium Midbass 4 Ohm - Part Number: 293-134 by Ciare.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)220 Watts
Power Handling (MAX)450 Watts
Impedance4?
Frequency Response50 to 4,000Hz
Sensitivity100.5dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)53Hz
DC Resistance (Re)2.8?
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)13.5
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)2.47ft?
BL Product (BL)10.6T?m
Diaphragm Mass Inc Airload (Mms)54g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)547cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.31"
# Mounting Holes8
Sealed Volume1ft?
Sealed F398.1Hz
Vented Volume2.375ft?
Vented F352.2Hz
