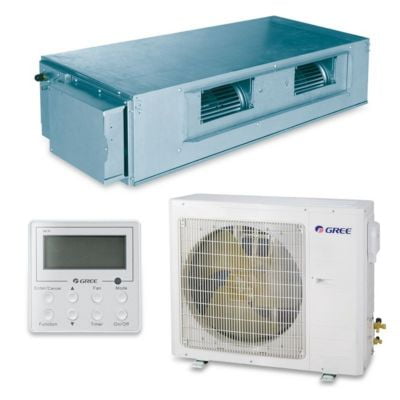

Specs: SEER: 16.0000 EER: 10.7000 Room Size: 800 - 1,300 ft2 Outdoor Condenser Model: UMAT24HP230V1AO Indoor Concealed Duct Model: UMAT24HP230V1AD Required, but not included: 3/8" x 5/8" line set The Gree U-Match UMAT24HP230V1AD-S is a 24,000 BTU concealed Slim Duct ductless mini split heat pump system. It's an energy efficient 16 SEER system, and the slim duct design will add inconspicuous climate control to any room. Each unit can be operated by the included wired controller mounted to the wall. Just like a wall-mounted ductless split, the air handler is connected to the outdoor condenser via a line set. This type of system allows for incredible flexibility in terms of air distribution and the type of grille or diffuser that will compliment your room's style. This system uses a 3/8" x 5/8" line set and has a maximum line run of 98' (29.8m). Features & Benefits: High Efficiency G10 Inverter Engineering Technology Quiet operation - sound pressure level at 57dB(A) (outdoor), down to 40dB(A) (indoor) Medium static pressure capability Power failure recovery Internal condensate drain pump Low ambient cooling (5degs F) Eco-friendly R410A refrigerant Flexible return air from bottom or rear (as needed) Slim line construction - just 7-7/8" high Sentry float switch in air handler Please Note: Mini Split Systems must be installed by a licensed Contractor with an EPA Refrigerant Certification to qualify for warranty. Which line set kit do I need? This system uses (1) 3/8" x 5/8" line set. These are sold separately, and you can choose from our 15 ft, 25 ft, 35 ft, 50 ft, and 75 ft lengths. The length needed depends on the needs of your project and how you will set up the system (distance from outdoor condenser to indoor air handler). Can I install this myself? While installation of a ductless split is much easier than a central air system, it's still much more advanced than installing a window unit or portable. Furthermore, the manufacturer warranty is only valid if a licensed professional does the installation. So while it is possible to do the installation yourself, we strongly recommend you hire an HVAC professional in your area . Is this backed by a warranty? Yes, it comes fully backed by a manufacturer's warranty, and ComfortUp is an authorized online seller of these systems. Our Customer Care Team will provide assistance should you ever need to file a warranty claim with the manufacturer. Please be aware that only systems that are installed by a licensed HVAC contractor are backed by the warranty. Proof of licensed installation is required. The receipt/invoice from your contractor should be sufficient. Note: Concealed ducts need to be installed in a conditioned space in order to operate effectively. Its highly recommended to discuss this application with a licensed contractor that is experienced with the installation of these units.
