PX0768/S Bulgin | Connectors, Interconnects | DigiKey

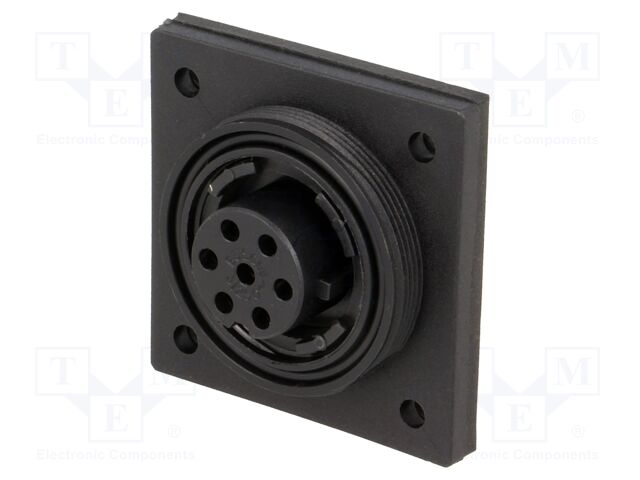

The Bulgin PX0768/S is a standard circular connector with a 7-pole flange socket and low-profile screw design. It features a screw terminal configuration with 7 terminals and one port.
Standard Buccaneer Low Profile Flange Mount Connector - 7 Pole
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Bulgin |
|---|---|
| Extra Product Name | PX0768/S Bulgin | Connectors, Interconnects | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | PX0768/S |
| qtyInStock | 0 |
| SKU | PX0768/S-ND |
| Part Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 (Power) |
| Shell Size - Insert, Shell Size, MIL, Shell Finish, Features, Backshell Material, Plating, Cable Opening, Contact Finish Thickness - Mating, Applications | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Finish - Mating | Nickel |
| Color | Black |
| Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 HB |
| Shielding | Unshielded |
| Current Rating (Amps) | 3A |
| Voltage Rating | 277VAC/DC |
| Operating Temperature | -20?C ~ 70?C |
| Contact Material | Brass |
| Insert Material | Polyamide (PA), Nylon |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | PX0768/S-ND | 1 | 1 | ||
 Onlinecomponents.com | PX0768/S | 1 | 25 | 1 | 1 @ $14.58, 25 @ $13.85, 50 @ $13.16, 100 @ $12.50, 500 @ $11.88, 1000 @ $11.64, 5000 @ $11.41 |
| Allied Electronics | 71033178 | 1 | 1 | ||
| iodParts | PX0768/S | 25 | 50 | 25 | 25 @ $14.60, 50 @ $14.17 |
| PX0768/S | 1 | 107 | 1 | 1 @ $29.99, 5 @ $26.66, 25 @ $23.32 | |
| Hotenda | H1142326 | 1 | 1 | ||
 swatee.com | PX0768/S | 1 | 24 | 1 | 1 @ $33.02 |
| AmazonSC | B07MGKCS77 | 1 | 1 | 1 @ $38.26 | |
| Digi-Key | 3962488 | 1 | 1 | 60 @ $22.83 | |
| RS Delivers | 204-8069 | 1 | 1 | 1 @ $14.59 | |
| Newark | 92C5344 | 1 | 1 | ||
| us.rs-online.com | 71033178 | 1 | 1 | 1 | 1 @ $33.74 |
 Newark | 62AK5836 | 1 | 1 | 1 @ $30.50, 10 @ $26.87, 25 @ $24.90, 50 @ $23.76, 100 @ $22.52, 250 @ $21.79, 500 @ $20.75 |
