IXFK100N65X2 IXYS | Discrete Semiconductor Products | DigiKey

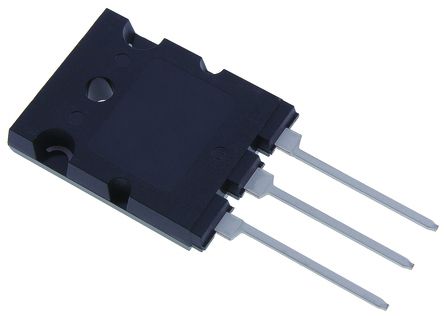

IXYS IXFK100N65X2 | Transistor: N-MOSFET; unipolar; 650V; 100A; 1040W; TO264; 200n
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFK100N65X2 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | IXFK100N65X2 |
| qtyInStock | 112 |
| SKU | IXFK100N65X2-ND |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA |
| Vgs (Max) | ?30V |
| FET Feature | - |
| Power Dissipation (Max) | 1040W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264 |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 11300 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFK100N65X2-ND | 1 | 112 | 1 | |
| 168-4813 | 25 | 25 | 25 @ $10.61, 50 @ $10.08, 125 @ $9.55 | ||
| Future Electronics | C010612998 | 25 | 25 | 25 @ $9.73, 50 @ $9.11, 100 @ $8.85 | |
| IXFK100N65X2 | 1 | 41 | 1 | 1 @ $19.41, 3 @ $17.29, 10 @ $15.38, 25 @ $13.90 | |
| Digi-Key | 5629496 | 1000 | 1000 | 1 @ $19.29, 10 @ $17.73, 100 @ $14.97, 500 @ $13.32, 1000 @ $12.52 |
