Swit Electronics . S-3602I

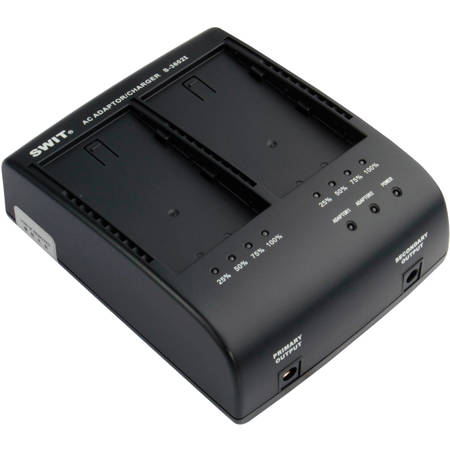

SSL-JVC50 DV battery Charger S-3602I is a dual channel charger for SWIT S-8i50 and compatible with SSL-JVC50 DV battery that used on JVC GY-HM600/650/HMQ10 cameras. Charger for SWIT S-8i50 battery 2-ch simultaneous charging Compatible with SSL-JVC50 DV battery 2 DC adapting output sockets 4-level LED charging indicators Dual Channel Simultaneous Charging S-3602I has 2 charging channels, with DC 8.4V, 2A charging output for each channel and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging. AC-DC Adapting Output S-3602I has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. The package also provides a dummy battery adaptor (S-7500I) for adapting JVC GY-HM600/650 cameras or the equipments with SSL-JVC50 battery mounts. Advanced Charging Curve Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging. Multiple Safety Protection Design
