Order YA26TC516 by Burndy 30014847 Compression Connector, 2/0AWG, 5/16" Stud, (Pack of 250 pcs) - US Mega Store

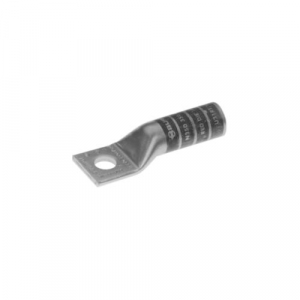

Burndy, YA26TC516, 30014847 Compression Connector, 2/0AWG, 5/16" Stud CU 2/0AWG;5/16 STUD long.

Burndy . YA26TC516

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA26TC516
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA26TC516 by Burndy 30014847 Compression Connector, 2/0AWG, 5/16" Stud, (Pack of 250 pcs) - US Mega Store
diameter, height, length0.56
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA26TC516
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA26TC516, 30014847 Compression Connector, 2/0AWG, 5/16" Stud CU 2/0AWG;5/16 STUD long.
tierPrice117.56
width0.83
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index13
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
Dimension - B Length inch1.50 in
Dimension - Hole Size inch0.33 in
Dimension - L Length Overall mm67 mm
Dimension - Length Overall inch2.65 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch1-9/16
Dimension - Stud Size inch5/16
Thickness - Pad0.12 in
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Size70 mm²,2/0 AWG
Conductor - Copper Str Size Range2/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA26TC5161-211 @ $17.56
Platt.com209958611
GalcoYA26TC516-BURN2502501 @ $25.04
Graybar26099338111 @ $19.07
