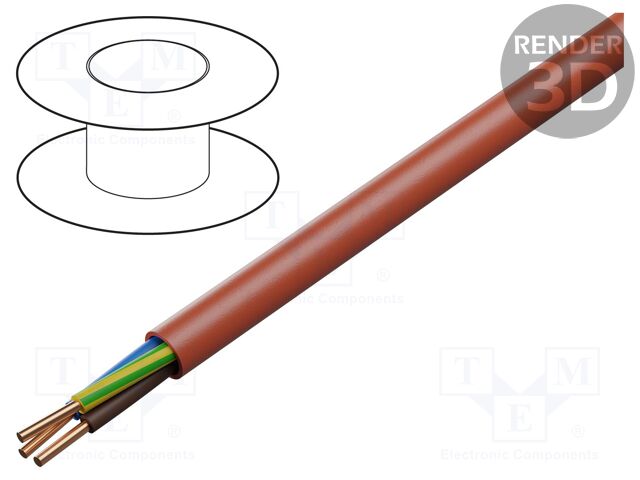

BITNER B52050 | Wire: mains; HDGs; Insulation: LSZH; Colour: red; Core: Cu; Cores: 3
BITNER B52050 | Wire: mains; HDGs; Insulation: LSZH; Colour: red; Core: Cu; Cores:
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BITNER |
|---|---|
| CategoryL1 | Wires and Cables |
| CategoryL2 | Cables |
| CategoryL3 | Fire Performance Cables |
| DimensionUnit | mm |
| Extra Product Name | BITNER B52050 | Wire: mains; HDGs; Insulation: LSZH; Colour: red; Core: Cu; Cores: 3 |
| atoms | 1 |
| diameter, length, width | 7.1 |
| jsonUrlData | 77d28fff61d8af810675a8b14c9a5fae. |
| jsonUrlData2 | 52d6258b26cbec8ad281 |
| keywords | BITNER, B52050, BITNER-B52050, Wires and Cables, Cables, Fire Performance Cables |
| length_Attrib, width_Attrib | Cable external diameter |
| moq, multiple, tierMinQty1 | 5 |
| MPN | B52050 |
| qtyInStock | 0 |
| SKU | BITNER-B52050 |
| snippet | BITNER B52050 | Wire: mains; HDGs; Insulation: LSZH; Colour: red; Core: Cu; Cores: |
| tierMinQty2 | 25 |
| tierMinQty3 | 50 |
| tierMinQty4 | 100 |
| tierPrice1 | 1.69 |
| tierPrice2 | 1.38 |
| tierPrice3 | 1.23 |
| tierPrice4 | 1.08 |
| Type of wire | mains |
| Kind of wire | HDGs |
| Wire insulation material | LSZH |
| Insulation colour | red |
| Kind of core | Cu |
| Shield structure | unshielded |
| Number of cores | 3 |
| Cable application | alarm instalations, |
| Cable external diameter | 7.1mm |
| Operating temperature | -30...80?C |
| Core structure | solid |
| Kind of material | no flame propagation |
| Core section | 1mm |
| Core marking | colours without colour repetition |
| Earth core | yellow-green |
| CPR standard | B2 |
| Resistance to | fire, |
| Conform to the norm | FE180 PH90 |
| Cable features | low smoke density |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| BITNER-B52050 | 5 | 5 | 5 @ $1.69, 25 @ $1.38, 50 @ $1.23, 100 @ $1.08 |
