Hamilton

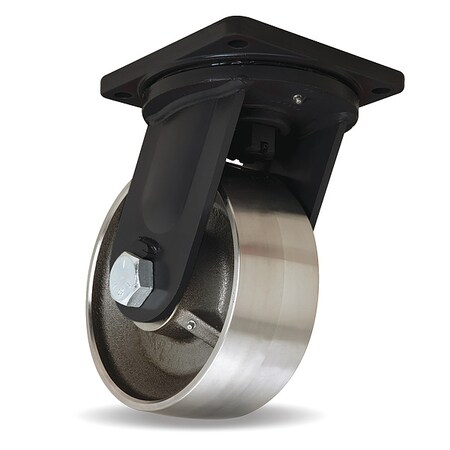

Hamilton . S-MDK-104HFSB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA13
UPCNone
UnitOfMeasureEA
Weight90
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height10
jsonUrlData924526ffbdad25e5923b
length, width16
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-MDK-104HFSB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9075103
tierPrice11274.83
urlhttps://www.zoro.com/hamilton-plate-caster-5750-lb-load-rating-s-mdk-104hfsb/i/G9075103/
Caster Sub-TypeSwivel
Load Rating5750 lb
Wheel Dia10 in
Wheel Width, Overall Wheel Width4 in
Wheel/Tread Hardness RatingExtra Hard
Wheel Core MaterialForged Steel
Wheel Bearing TypePrecision Ball
Leveling Caster, Non-Marking, Includes Mounting Fasteners, Includes Thread Guards, With Toe Plate, NSF ListedNo
TreadFlat
Operating Temperature Range-50 Degrees to 200 Degrees F
Wheel TypeFlat-Free
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing7 in x 7 in
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Material, Caster Frame MaterialSteel
Swivel ConstructionKingpinless
For Axle Dia1 1/4 in
Swivel Raceway TypeSingle Ball
Mounting Plate Thickness, Mounting Bolt Dia5/8 in
Load Rating Range3000 to 5999 lb
Frame ConstructionForged
Wheel Bearing MaterialStainless Steel
For Surface TypeConcrete
SeriesMagmaMax
Wheel Core TypeSolid
Frame ColorBlack
Number of Mounting Holes4
Tire StyleTubeless
StandardsICWM
Frame FinishEnamel
Caster Mounting TypePlate
Swivel Lock TypeNo Lock Included
Core Color, Wheel/Tread ColorSilver
Swivel Radius8 1/2 in
Mounting Height13 in
ESD Conductive, Includes Spanner BushingYes
Swivel Bearing Seal TypeOpen
ItemHeat-Resistant Standard Plate Caster
Swivel Lead3 in
Caster Brake TypeNo Brake Included
Mounting Plate Size8 1/2 in x 8 1/2 in
Caster Product GroupKingpinless Caster
FeaturesDurable, High Heat, Quiet Operation, Reliable
Mounting Plate Bolt Hole PatternD
Wheel/Tread Hardness179 BHN
Tread ShapeStandard
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9075103111 @ $1274.83
