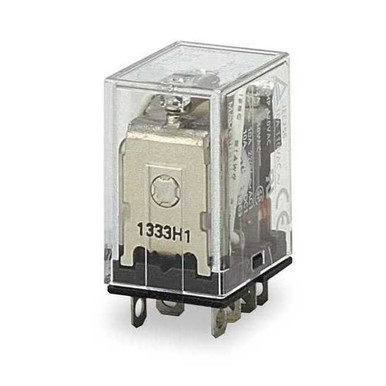

LY2Z-DC24 Omron Automation and Safety | Relays | DigiKey
General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 7 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 4 A @ 120V, 5 A @ 120V, Contact Rating (DC) 4 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Omron Automation and Safety |
|---|---|
| Extra Product Name | LY2Z-DC24 Omron Automation and Safety | Relays | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | LY2Z-DC24 |
| qtyInStock | 200 |
| SKU | Z11229-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierMinQty8 | 1000 |
| tierMinQty9 | 5,000 |
| tierPrice1 | 20.32000 |
| tierPrice2 | 19.30400 |
| tierPrice3 | 18.28760 |
| tierPrice4 | 17.27160 |
| tierPrice5 | 16.25570 |
| tierPrice6 | 15.23972 |
| tierPrice7 | 14.22372 |
| tierPrice8 | 13.71573 |
| tierPrice9 | 13.51253 |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Type | Non Latching |
| Features, Seal Rating, Coil Insulation | - |
| Termination Style | Plug In |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -25?C ~ 55?C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
| Contact Rating (Current) | 5 A |
| Coil Current | 36.9 mA |
| Operate Time, Release Time | 25 ms |
| Coil Resistance | 650 Ohms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | Z11229-ND | 1 | 200 | 1 | 1 @ $20.32, 10 @ $19.30, 25 @ $18.29, 50 @ $17.27, 100 @ $16.26, 250 @ $15.24, 500 @ $14.22, 1000 @ $13.72, 5000 @ $13.51 |
| LY2ZDC24 | 1 | 11 | 1 | 1 @ $15.78, 10 @ $14.35, 25 @ $11.60, 50 @ $11.11, 100 @ $10.66, 250 @ $10.38, 500 @ $10.12 | |
 Zoro | G1575016 | 1 | 80 | 1 | 1 @ $20.39 |
| Grainger | 1YDE7 | 1 | 1 | ||
 Radwell | LY2Z-DC24 | 1 | 42 | 1 | |
 Raptor Supplies | AB4HZZ | 1 | 1 | 1 @ $33.80 | |
| Newark | 51B759 | 1 | 9 | 1 | 1 @ $30.90, 5 @ $29.19, 10 @ $25.66, 25 @ $23.04, 50 @ $21.60, 100 @ $20.42, 250 @ $19.25 |
| Amazon | B0073UAYY2 | 1 | 1 | ||
| Allied Electronics | 71063134 | 1 | 1 | ||
| sustainablesupply.com | C1168756 | 1 | -2 | 1 | 1 @ $22.28 |
 grainger.ca | WWG1YDE7 | 1 | 1 | 1 @ $20.71 | |
 simsupply.com | ZO-G1575016 | 1 | 22 | 1 | 1 @ $32.07 |
| Newark | 40AJ0110 | 1 | 1 | 1 @ $34.35, 5 @ $31.70, 10 @ $29.49, 25 @ $27.04, 50 @ $25.29, 100 @ $24.01 | |
| us.rs-online.com | 71063134 | 1 | 2 | 1 | 1 @ $33.17 |
| Digi-Key | 1813776 | 1 | 1 | ||
| Airline Hydraulics | OMRON LY2Z-DC24 | 1 | 1 | 1 @ $31.93 | |
| Master Electronics | LY2ZDC24 | 1 | 3 | 1 | 1 @ $19.10, 3 @ $17.85 |
