IX3120G IXYS Integrated Circuits Division | Isolators | DigiKey

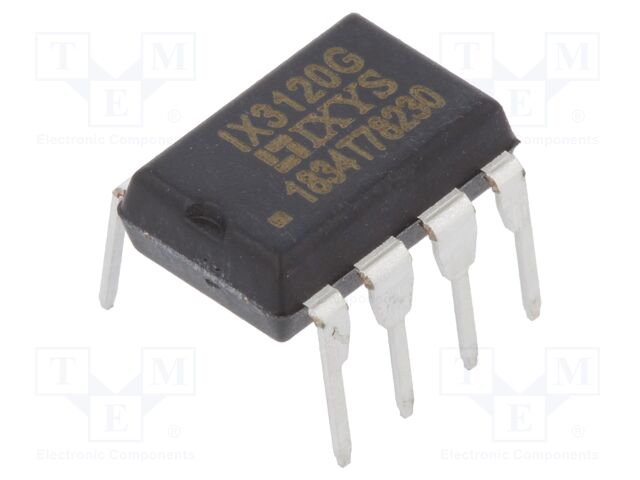

IXYS IX3120G | Optocoupler; THT; Ch: 1; OUT: transistor; 3.75kV; DIP
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS Integrated Circuits Division |
|---|---|
| Extra Product Name | IX3120G IXYS Integrated Circuits Division | Isolators | DigiKey |
| atoms, minimum, moq, multiple, Number of Channels | 1 |
| MPN | IX3120G |
| qtyInStock | 0 |
| SKU | CLA392-ND |
| Series | - |
| Part Status | Obsolete |
| Technology | Optical Coupling |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/?s |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40?C ~ 100?C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | UR |
| Current - DC Forward (If) (Max) | 20 mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CLA392-ND | 1 | 1 | |||
| Hotenda | H2721814 | 1 | 1 | ||
| Future Electronics | C008339621 | 1000 | 1000 | 1000 @ $1.10, 1150 @ $1.10 | |
| IX3120G | 1 | 1 | |||
| Digi-Key | 3789853 | 1 | 1 |
