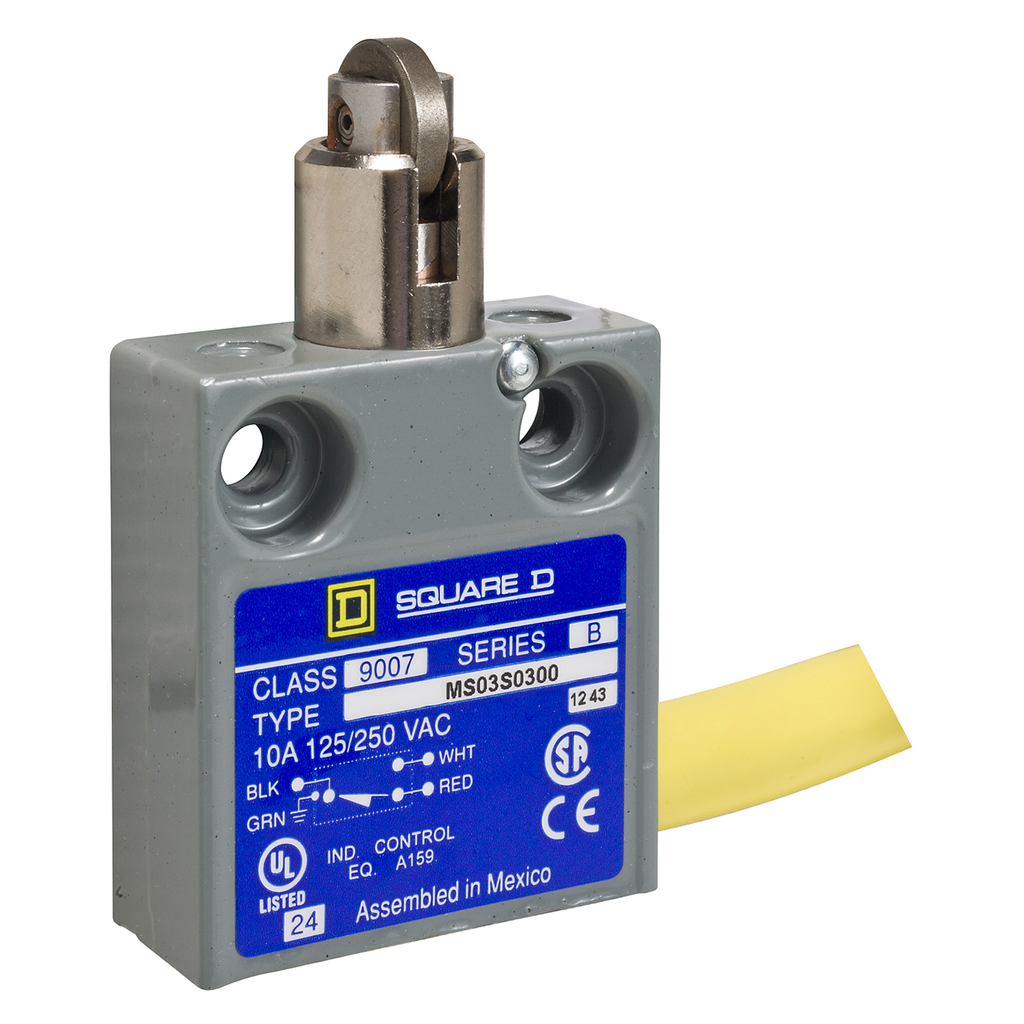

Limit switch, 9007MS, miniature, cross roller plunger, 10A at 240VAC, 1NO/1NC, 9 feet of cable, side, NEMA 4, 6P, 12, 13 | Mayer Electric

Mayer Electric Supply . 9007MS03S0306

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007MS, miniature, cross roller plunger, 10A at 240VAC, 1NO/1NC, 9 feet of cable, side, NEMA 4, 6P, 12, 13 | Mayer Electric
UPC785901121695
Weight1.2
WeightUnitlbs
Weight_AttribNet Weight
depth, length0.62
height3.5
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-240VAC-10AMP-MS-OPTIONS-785901121695
jsonUrlData23d3b6d6c-8d6a-40fd-a2ad-abd2006184a1
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Poles, Sale Per Indivisible Quantity1
MPN9007MS03S0306
qtyInStock0
SKUSQD9007MS03S0306
tierPrice1171.81
width1.56
width_AttribWidth
Series Nameminiature potted
Body Typefixed
Range Of Product9007
Body Materialcast zinc
Sensor Designminiature
Product Or Component Typelimit switch
Materialmetal
Device Short Name9007MS/ML
Head Typeplunger head
Warranty18 months
Switch Actuationby 30? cam
Type Of Approachtraverse approach, 2 directions
Contacts Type And CompositionNC-NO
Height1.75-1.75 in
Movement Of Operating Headlinear
Terminals Description Iso N?1(red)NC || (black)com || (green-yellow)gnd || (white)NO
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC
Fixing Modeby the body
Contacts Materialsilver contacts
Mechanical Durability10000000 cycles
Maximum Force For Tripping80 ozf
Type Of Operatorspring return cross roller plunger steel -
[Ithe] Conventional Enclosed Thermal Current10 A
Type Of CableSJTO AWG 18), 9 ft, Yellow
Wire Insulation MaterialPVC
Contact FormForm C
Switch FunctionSPDT
Electrical Connectionpre-wired cable side
MarkingCE || UL || CSA
Width1.56 in
Depth0.62 in
Electrical Durability100000 cycles
Net Weight1.2 lb(US)
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationsCSA || UL || CE
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-220 ?F
StandardsLR 25490 Class 32 11 03 || E78403
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
Shock Resistance35 gn 9 ms IEC 60068-2-27
Vibration Resistance10 gn 75-1200 Hz)IEC 60529
Protective Treatmentepoxy powder coat
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007MS03S0306111 @ $171.81
