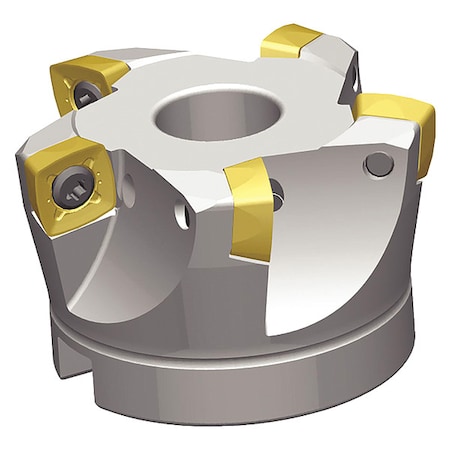

Indexable Profiling End Mill, Max. Cutting Dia. 66.00mm, Depth of Cut 2.50mm, Overall Length 45.00mm, ANSI Code VXF066Z06S27XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular
Indexable Profiling End Mill, Max. Cutting Dia. 66.00mm, Depth of Cut 2.50mm, Overall Length 45.00mm, ANSI Code VXF066Z06S27XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular
Gallery
Attributes
| Brand name, Manufacturer name | Widia |
|---|---|
| Manufacturer | Widia WIDIA |
| CategoryId, CategoryIdL3 | 9472 |
| CategoryIdL1 | 2 |
| CategoryIdL2 | 9549 |
| CategoryL1 | Tools & Machining |
| CategoryL2 | Cutting Tools |
| CategoryL3 | End Mills |
| CategoryL4 | Indexable End Mills |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 274NV8 |
| UnitOfMeasure | EA |
| Weight, Item_package_weight, Item_weight | 1.21 |
| WeightUnit | lbs |
| cali_prop65_message | WARNING: Cancer - www.P65Warnings.ca.gov |
| cali_prop65_orglabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| cali_prop65_warnmsgscenario | 5 |
| cali_prop65_whtlabel | True |
| countryOfOrigin | IN |
| height, length, width, Length | 3.94 |
| jsonUrlData | 924526ffbdad25e5923b |
| moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_boxes, Number_of_items, PackageQuantity | 1 |
| MPN, ANSI Code, ISO Number, Keyword, PartNumber, Part_number | VXF066Z06S27XD12 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G3789869 |
| tierPrice1 | 634.99 |
| url | https://www.zoro.com/widia-indexable-face-mill-vxf-series-high-speed-steel-250mm-depth-of-cut-vxf066z06s27xd12/i/G3789869/ |
| Overall Length | 45.00mm |
| Depth of Cut | 2.50mm |
| Insert Size | 120512 |
| Max Cutting Dia | 66.00mm |
| Arbor Dia | 27.00mm |
| Hub Outside Dia | 52.50mm |
| Item | Indexable Profiling End Mill |
| Series | VXF |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Shape | 90 Degrees Square |
| Rake | -5 Degrees Radial, 5 Degrees Axial |
| Number of Inserts | 6 |
| Cutting Application | Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Spiral Circular |
| Max Speed | 19,000 RPM |
| Coolant Fed | Coolant Through |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver |
| Insert Holding Type | Screw |
| Insert Style | XDPT ERMM |
| ASIN, Asin | B09J1S3BLX |
| Binding | Misc. |
| Brand, Label, Publisher, Studio | WIDIA |
| Bullet_point, Included_components | Indexable Face Mill 120512 90 Square |
| ClassificationId | 262582011 |
| DisplayName | Face Mill Holders |
| Height, Width | 3.94 75 |
| Identifier | 4061779080217 |
| IdentifierType | EAN |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name, Title | WIDIA VXF066Z06S27XD12 Indexable Face Mill,120512,90 Square |
| Item_type_keyword | face-mill-holders |
| Package_level | unit |
| ProductGroup, WebsiteDisplayGroupName | BISS Basic |
| ProductType, ProductTypeName | ELECTRONIC_COMPONENT |
| Product_site_launch_date | 2021-10-08T22:02:56.321Z |
| Supplier_declared_dg_hz_regulation | not_applicable |
| Type | ean |
| URL | https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif |
| Unit | inches pounds |
| Units | inches pixels pounds |
| WebsiteDisplayGroup | biss_basic_display_on_website |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G3789869 | 1 | 1 | 1 @ $634.99 |
