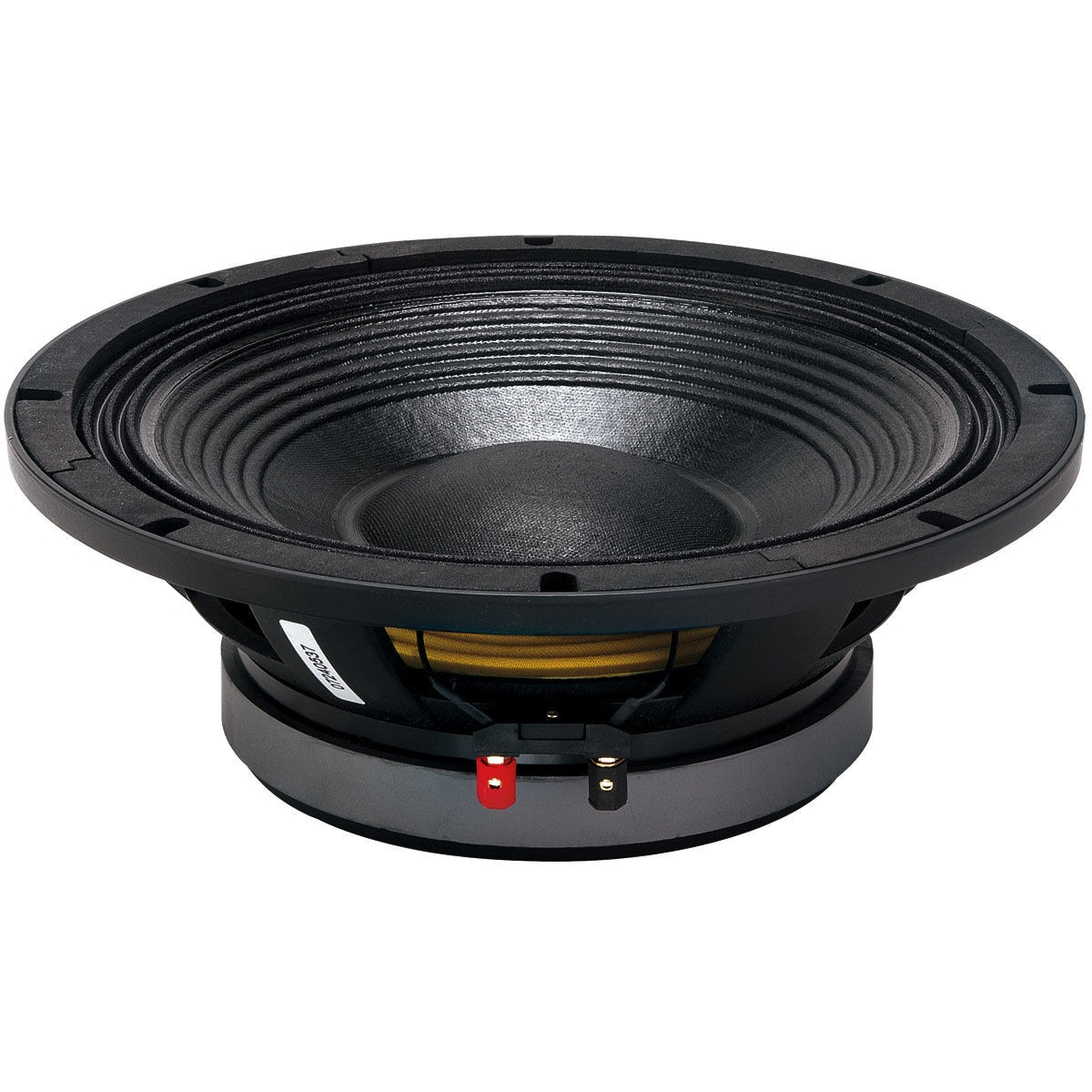

B&C 12PS100 12" Woofer

B&C 12PS100 12" Woofer. Part Number: 294-665 by B&C Speakers.

B&C Speakers . 12PS100

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12PS100 12" Woofer
UPC844632002120
Weight20.7
WeightUnitlbs
depth, length4.6
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12PS100
qtyInStockOnly 4 In Stock
SKU, Part Number294-665
snippetB&C 12PS100 12" Woofer. Part Number: 294-665 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8?
Frequency Response45 to 1,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)44Hz
DC Resistance (Re)5.3?
Voice Coil Inductance (Le)2mH
Mechanical Q (Qms)3.9
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)1.6ft?
BL Product (BL)22.5T?m
Diaphragm Mass Inc Airload (Mms)106g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)531cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth4.6"
# Mounting Holes8
Sealed Volume0.4ft?
Sealed F3133.1Hz
Vented Volume1.5ft?
Vented F348.4Hz
