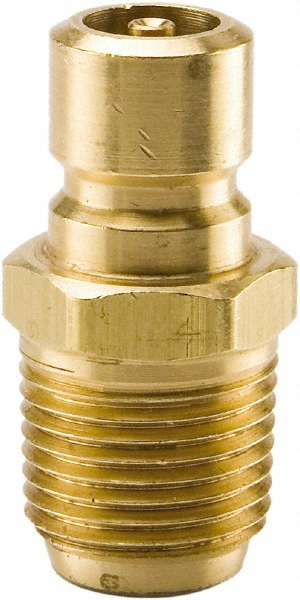

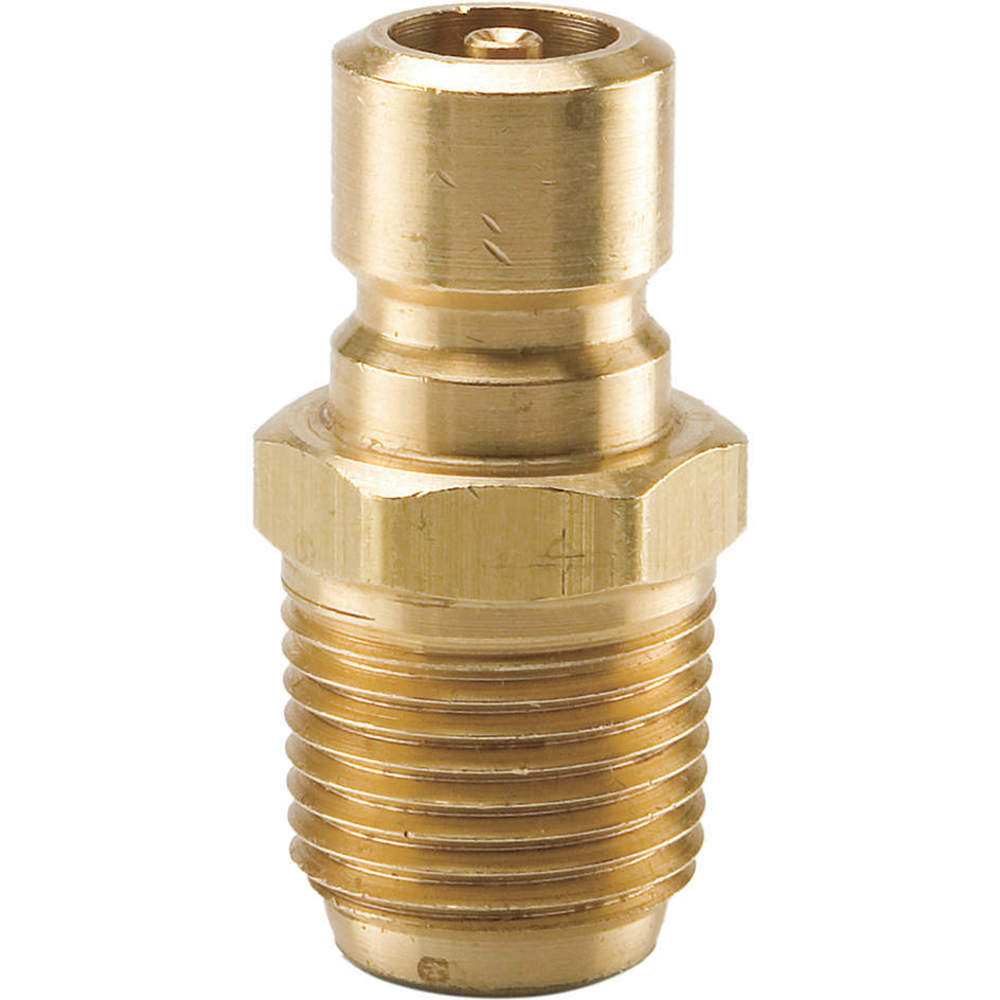

Hydraulic Quick Connect Hose Coupling, Plug, Moldmate Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 200 psi, Max. Flow Rate 22.71 lpm
Hydraulic Quick Connect Hose Coupling, Plug, Moldmate Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 200 psi, Max. Flow Rate 22.71 lpm
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Parker |
|---|---|
| CategoryId, CategoryIdL3 | 5403 |
| CategoryIdL1 | 32 |
| CategoryIdL2 | 10615 |
| CategoryL1 | Power Transmission |
| CategoryL2 | Hydraulic Cylinders & Equipment |
| CategoryL3 | Hydraulic Hoses & Fittings |
| CategoryL4 | Hydraulic Quick Couplers |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 48C259 |
| UnitOfMeasure | EA |
| Weight | 0.05 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | US |
| height, width | 0.7 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 1.5 |
| moq, multiple, tierMinQty1 | 1 |
| MPN | BPV353 |
| qtyInStock | 45 |
| qtyInStockOverride | -2 |
| SKU | G5133667 |
| snippet | Hydraulic Quick Connect Hose Coupling, Plug, Moldmate Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 200 psi, Max. Flow Rate 22.71 lpm |
| tierPrice1 | 14.79 |
| url | https://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-38-18-thread-size-moldmate-series-bpv353/i/G5133667/ |
| Coupler Thread Size, Thread Size | 3/8"-18 |
| Coupler Body Size | 3/8" |
| Overall Length | 1 31/64 in |
| Coupling Size | 3/8 in |
| Max Outside Dia | 51/64 in |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Item | Hydraulic Quick Connect Hose Coupling |
| Coupler Interchange Type, Series | Moldmate |
| Connection Type | NPTF |
| Coupler Flow Rate | 6.0 gpm |
| Max Pressure | 200 psi |
| Coupler Body Material, Sleeve Material, Body Material | Brass |
| Coupling Locking Type | Sleeve |
| Coupler Connection Type | MNPT |
| Seal Material | Fluorocarbon |
| Locking Mechanism | Ball |
| Seal Type | Tubular Valve |
| Shut Off | Poppet Shut Off |
| Operating Temp Range | -20 Degrees to 400 Degrees F |
| Valve Type | Poppet |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G5133667 | 1 | 45 | 1 | 1 @ $14.79 |
| Grainger | 48C259 | 1 | 1 | ||
| AD6QRR | 1 | 1 | 1 @ $29.88 | ||
| AmazonSC | B00DSSKTR0 | 1 | 1 | 1 @ $25.34 | |
 simsupply.com | ZO-G5133667 | 1 | 33 | 1 | 1 @ $23.39 |
| MRO Stop | 644001675 | 1 | 1 | 1 @ $15.34 | |
| Airline Hydraulics | PARKER BPV353 | 1 | 1 | 1 @ $20.26 | |
| 60964871 | 1 | -2 | 1 | 1 @ $22.83 |
