Toa Electronics . U-03R
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TOU03R | 1 | 1 | 1 @ $54.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

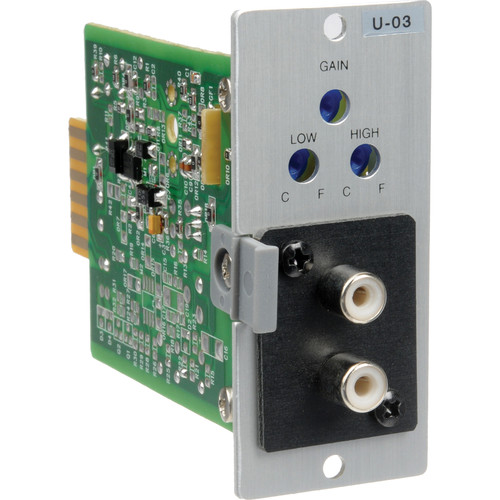

TOA U-03R Unbalanced Line Input Module with High Low Cut Filters
Brand: TOA Electronics
TOA U-03R Unbalanced Line Input with High Cut and Low Cut Filters For use with 900 Series Amplifier and AX-1000 Amplifier, 20Hz - 20kHz Frequency Response, RCA Pin Jacks Input Connector The U-03R is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a low-cut and a high-cut filter. Key Features For use with 900 Series Components and Other TOA's Equipment Specifications Power Source: 24 VDC (supplied from the main frame) Current Consumption: 4 mA Input Sensitivity: -20 dB (rated output: -20 dB), adjustable: -20 to +10 dB Input Impedance: 220 kΩ, unbalanced Frequency Response: 20 Hz - 20 kHz ±1.0 dB Distortion: 0.05 % or less (1 kHz, output: 0 dB) Noise Level: -106 dB (20 Hz - 20 kHz BPF) Gain: -30 - 0dB Connector: Female XLR connector (XLR-3-31 equivalent) Dimensions (WxHxD): 35 x 78 x 88 mm (1.38" x 3.07" x 3.46") Weight: Max. 75 g (0.17 lb)
Details
- For use with 900 Series Amplifier and AX-1000 Amplifier
- Input Sensitivity (Rated Output 100 mV): 100 - 3,600 mV (adjustable)
- Noise Output (20 Hz - 20 kHz BPF): Under 10 μV
- Output Connector: 6P card edge-connector
- Distortion: Under 0.05 %
Listing
| Binding | Unknown Binding |
|---|---|
| Product group | Musical Instruments |
| Product type | ELECTRONIC_COMPONENT_AMPLIFIER |
| Model | U-03R |
| Part number | U-03R |
| Label | TOA Electronics |
| Manufacturer | TOA Electronics |
