DIXON J3B3 3/8" TRUFLATE NIP 3/8" P-LOC STEEL 100093-3 - MROSupply.com

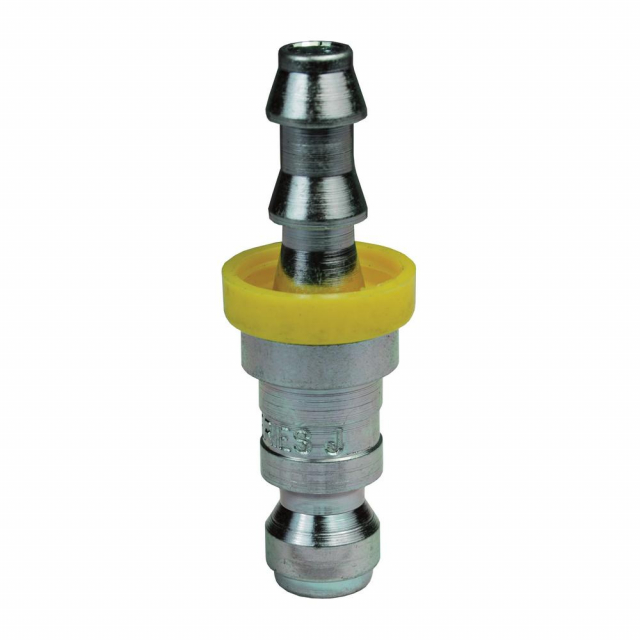

Dixon, J3B3, J-Series 3/8" DQC Automotive Plug Push-On Hose Barb 3/8" Hose ID Steel Specifications Rated pressure for connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst Construction Machined components are manufactured using solid bar stock Compatibility & Interchange Data Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400 Safety notes Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
