ZXT12N20DXTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey

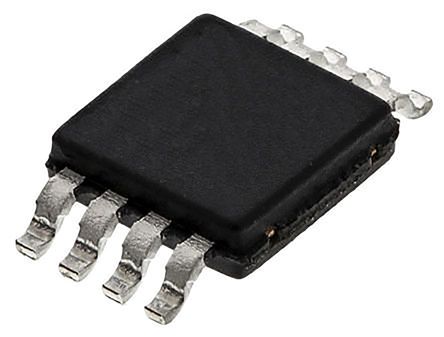

Bipolar (BJT) Transistor Array 2 NPN (Dual) 20V 3.5A 112MHz 1.04W Surface Mount 8-MSOP
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Diodes Incorporated |
|---|---|
| Extra Product Name | ZXT12N20DXTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN | ZXT12N20DXTA |
| qtyInStock | 300 |
| SKU | 307979 |
| snippet | Bipolar (BJT) Transistor Array 2 NPN (Dual) 20V 3.5A 112MHz 1.04W Surface Mount 8-MSOP |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierPrice1 | 1.8515 |
| tierPrice2 | 1.66405 |
| tierPrice3 | 1.3372199999999999 |
| tierPrice4 | 1.0986179999999999 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Transistor Type | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 3.5A |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 50mA, 3.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 1A, 2V |
| Power - Max | 1.04W |
| Frequency - Transition | 112MHz |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | ZXT12N20 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 307979 | 1 | 300 | 1 | 1 @ $1.85, 10 @ $1.66, 100 @ $1.34, 500 @ $1.10 |
| Hotenda | H2038587 | 1 | 1000 | 1 | 1 @ $0.75 |
| 711-5159 | 1 | 1 | |||
| Digi-Key | 307980 | 1 | 599 | 1 | 1 @ $1.61, 10 @ $1.34, 25 @ $1.29, 100 @ $1.06, 500 @ $0.90 |
| Digi-Key | 1870230 | 1 | 300 | 1 | 1 @ $1.85, 10 @ $1.66, 100 @ $1.34, 500 @ $1.10 |
 Newark | 29AK9319 | 1 | 945 | 1 | 1 @ $1.75, 10 @ $1.49, 25 @ $1.40, 50 @ $1.31, 100 @ $1.22, 250 @ $1.14, 500 @ $1.05, 1000 @ $0.93 |
| TME | ZXT12N20DXTA | 1 | 1 | 1 @ $1.74, 5 @ $1.57, 25 @ $1.38, 100 @ $1.25, 250 @ $1.16 |
