Zoro Select

Zoro Select . S-CH-83SPB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku, MPNS-CH-83SPB
UPCNone
UnitOfMeasureEA
Weight37
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty-2
height8
jsonUrlData924526ffbdad25e5923b
length12
moq, multiple, tierMinQty1, Number of Wheels1
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9261137
tierPrice1262.67
urlhttps://www.zoro.com/zoro-select-plte-caster-swvl-poly-8-2000-lb-blu-s-ch-83spb/i/G9261137/
width9
Caster Brake Included, Thread Guards, Extended LeadNo
Caster Load Rating RangeMedium-Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread ShapeStandard
Caster Wheel/Tread Material, Wheel/Tread MaterialPolyurethane
Load Rating2000 lb
Overall Height10-1/2"
Wheel Dia8 in
Wheel Width3 in
Plate Caster Bolt Hole Pattern, Caster Plate Hole PatternA
FeaturesFloor Protective
ApplicationAll Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Caster Core Material, Wheel Core MaterialCast Iron
Non-Marking, Caster Temp Range AvailableYes
Mounting Bolt Dia1/2 in
Core ColorGray
Caster Plate Thickness, Plate Thickness1/2"
Caster Wheel BearingsBall
Caster Raceway, Swivel Raceway TypeSingle Ball
Outside Bolt Hole Spacing4 1/8 in x 6 1/8 in
Frame FinishEnamel
Replacement Wheel49H437
Caster Product GroupSwivel Caster
IncludesSpanner Bushing
Caster Plate Size, Plate Size5-1/4" x 7-1/4"
Caster Frame MaterialSteel
Inside Bolt Hole Spacing3 3/8 in x 5 1/4 in

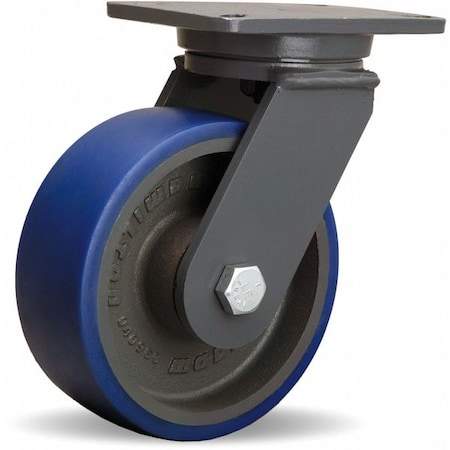

ItemPlte Caster
StandardsICWM
Durometer80 Shore A
Caster Min Temp-50 Degrees F
Caster Swivel Lock Type, Swivel Lock TypeNo Lock Included
Caster Max Temp175 Degrees F
Wheel ColorBlue
Frame MaterialForged Steel
Caster Temp Range-50 Degrees to 175 Degrees F
Mounting Plate Size5 1/4 in x 7 1/4 in
Load Rating RangeMedium
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9261137111 @ $262.67
ZoroG7823097111 @ $289.53
ZoroG6832183111 @ $284.39
