Male Elbow, Tube Size 4mm, Thread x Tube Connection, Material of Construction Polybutylene Terephthalate, Thread Size M6x1, Hex Size 8mm, Max. Pressure (PSI) 145, Temp. Range 23 to 140 Degrees F, Standards ROHS Features Color: White/Gray Item: Male Elbow, 90 Degrees Temp. Range: 23 Degrees to 140 Degrees F Body Material: Polybutylene Terephthalate Hex Size: 8mm Pipe Size: M6 x 1 Tube Size: 4mm Standards: RoHs Max. Pressure: 145 psi Connection Type: Tube x R(PT) Fittings Sub-Category: Elbows Basic Material: Plastic

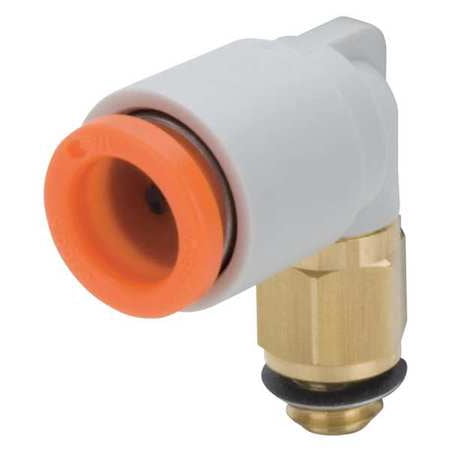

The SMC KQ2L04-M6A fitting is a 10-pack of nylon male elbow fittings with a 4 mm tube OD and M6x1.0 male threads. These fittings feature a push-to-connect metric tube connection on one end and a male metric thread with gasket on the other. They have a PBT and brass body and threads for resistance to corrosion, and can operate within a range of -14.5 to 145 psi and 23 to 140 degrees F.
Male Elbow, Tube Size 4mm, Thread x Tube Connection, Material of Construction Polybutylene Terephthalate, Thread Size M6x1, Hex Size 8mm, Max. Pressure (PSI) 145, Temp. Range 23 to 140 Degrees F, Standards ROHS Features Color: White/Gray Item: Male Elbow, 90 Degrees Temp. Range: 23 Degrees to 140 Degrees F Body Material: Polybutylene Terephthalate Hex Size: 8mm Pipe Size: M6 x 1 Tube Size: 4mm Standards: RoHs Max. Pressure: 145 psi Connection Type: Tube x R(PT) <
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SMC |
|---|
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 41108932 | 1 | 1 | 1 @ $8.41 |
