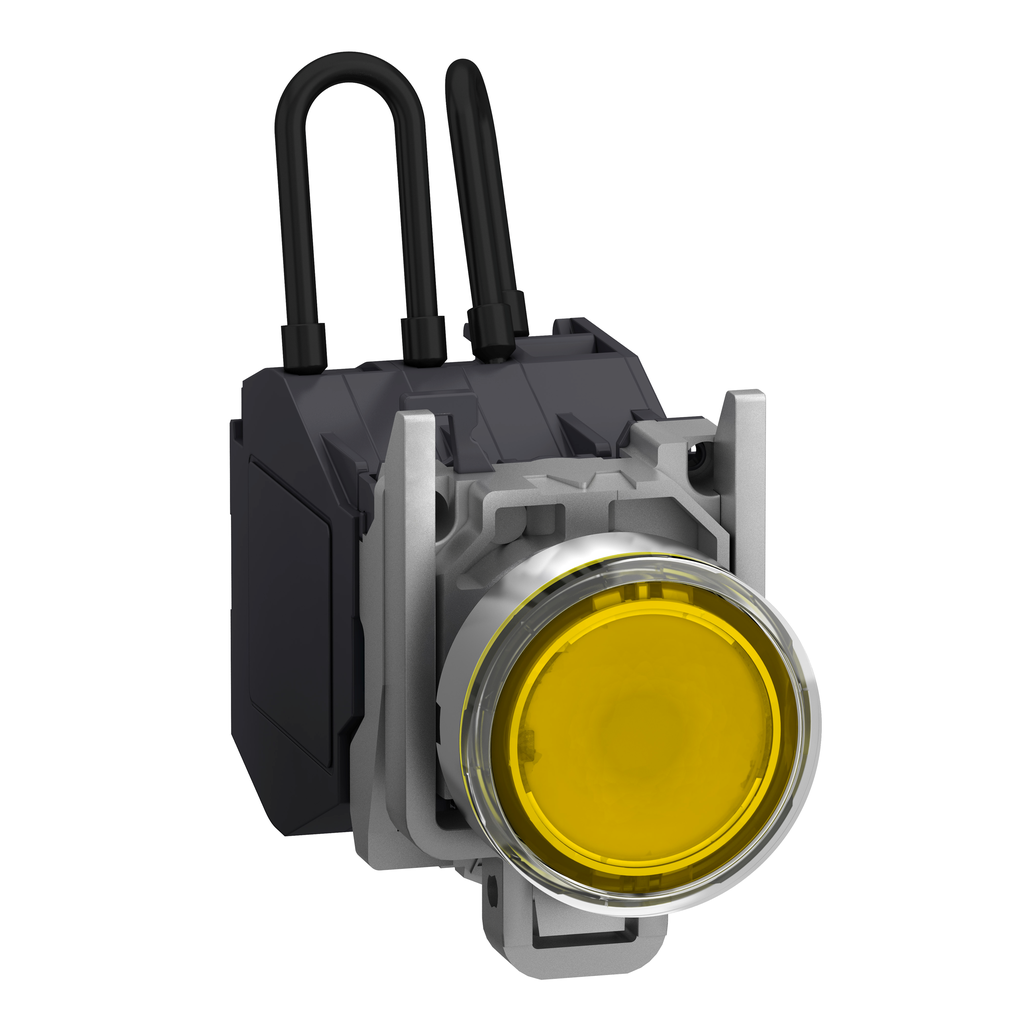

Push to test pilot light, Harmony XB4 - ATEX D, metal, orange, 22mm, integral LED, 1NO, 24?254V | Mayer Electric

SQUARE D . SQDXB4BW25BM5GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NamePush to test pilot light, Harmony XB4 - ATEX D, metal, orange, 22mm, integral LED, 1NO, 24?254V | Mayer Electric
UPC, MPN, SKUSQDXB4BW25BM5GEX
Weight0.117
WeightUnitkg
Weight_AttribNet Weight
depth, length72.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Push-to-test-pilot-light-Harmony-XB4-ATEX-D-metal-orange-22mm-integral-LED-1NO-24254V-SQDXB4BW25BM5GEX
jsonUrlData2e746ab6b-fdee-46e0-ab7c-aeea0058066c
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
qtyInStock0
tierPrice10.0
width46.2
width_AttribWidth
Range Of ProductHarmony XB4
Product Or Component Typepush-to-test pilot light
Bezel Materialchromium plated metal
Device Short NameXB4
[Us] Rated Supply Voltage24...254 V AC/DC
Height30 mm
Operator Additional Informationbooted (clear silicon)
Operating Force3.962 N
Embedding Depth58 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Operating Travel1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
Light Sourceintegral LED
Positive Openingwithout
Mounting Diameter22 mm
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingII 2 GD || Ex tb IIIC Db || Ex db eb mb IIC Gb
Cap/Operator Or Lens Colourorange
Net Weight0.117 kg
Current Consumption2...10 mA
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Contacts Type And Composition1 NO
Service Life100000 h
[Ui] Rated Insulation Voltage415 V
Signalling Typesteady
Contact Operationslow-break
Mechanical Durability5000000 cycles
Width46.2 mm
Depth72 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Dust Zonezone 21 - 22
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-18:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Ip Degree Of ProtectionIP66 IEC 60529
Gas Zonezone 1 - 2
Ambient Air Temperature For Storage-40-70 ?C
Overvoltage CategoryI IEC 60536
Protective TreatmentTH
