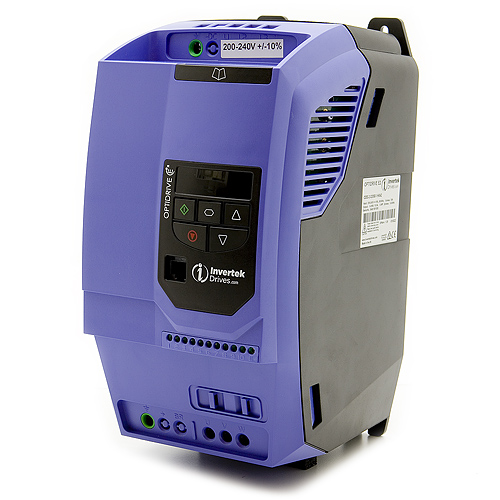

Invertek ODE-3-320153-1042 4kW 5Hp 15.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP20 OptiDrive E3 Economy VFD - MROSupply.com

Shop Invertek ODE-3-320153-1042 and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.

Invertek . ODE-3-320153-1042

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODE-3-320153-1042 4kW 5Hp 15.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP20 OptiDrive E3 Economy VFD - MROSupply.com
Voltage, Input voltage200 / 240V
Weight3.5
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length6.9
height10.3
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty1, Input phases1
MPNODE-3-320153-1042
qtyInStock0
SKU6092670
snippetShop Invertek ODE-3-320153-1042 and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
tierPrice1724.80
width6.377952755905512
width_AttribPackaged dimensions width
Frame, Phase, Drive dimensions size3
Height10.3 in
Depth6.9 in
Rated power4 kW/5 HP
Width (in)5.2
Supply fuse or MCB (type B)40 A
Packaged dimensions depth315 mm (12.4 in)
Supply current continuous29.2 A
Supply voltage200-240 V
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorInternal brake transistor
Packaged dimensions height254 mm (10 in)
Output current15.3 A
Drive dimensions fixings4 x M5
Drive dimensions depth175 mm (6.89 in)
EMC filterNo internal EMC filter
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height261 mm (10.28 in)
Packaged dimensions weight3.5 kg (7.72 lbs)
DisplayLED
Drive dimensions weight3.2 kg (7.05 lbs)
Motor output rating4 kW (5 HP)
Drive dimensions width131 mm (5.16 in)
EnclosureIP20
Packaged dimensions width162 mm (6.38 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092670111 @ $724.80
driveswarehouse.comODE-3-320153-10421-211 @ $724.80
vfds.comODE-3-320153-1042111 @ $808.93
