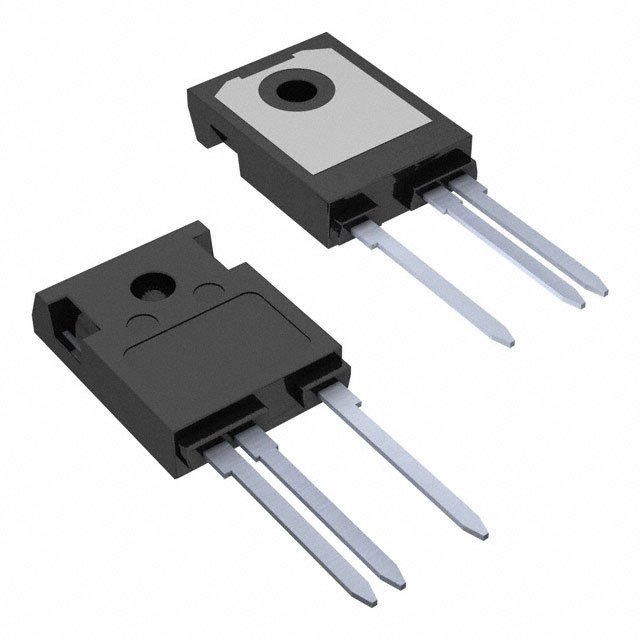

Littelfuse . IXBH20N360HV
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Littelfuse |
|---|---|
| moq, multiple | 1 |
| MPN, SKU, Manufacturer Part Number | IXBH20N360HV |
| qtyInStock | 5 |
| Current - Collector (Ic) (Max) | 70A |
| Current - Collector Pulsed (Icm) | 220A |
| Gate Charge | 110nC |
| IGBT Type | - |
| Input Type | Standard |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Operating Temperature | -55 |
| Package / Case | TO-247-3 Variant |
| Packaging | Tube |
| Power - Max | 430W |
| Reverse Recovery Time (trr) | 1.7 |
| Series | BIMOSFET |
| Standard Package | 30 |
| Supplier Device Package | TO-247HV |
| Switching Energy | 15.5mJ (on), 4.3mJ (off) |
| Td (on/off) @ 25?C | 18ns/238ns |
| Test Condition | 1500V, 20A, 10Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A |
| Voltage - Collector Emitter Breakdown (Max) | 3600V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| iodParts | IXBH20N360HV | 1 | 5 | 1 | |
 Newark | 80AH1977 | 1 | 1 | 1 | 1 @ $115.74 |
