Enerpac

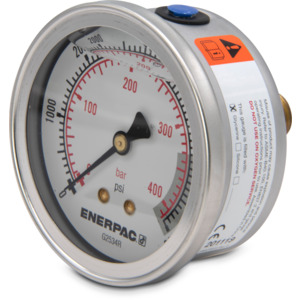

The G2534R is produced by Enerpac and is described as a Enerpac G2534R 223060 2-1/2" Gauge 0-6000 PSI

Enerpac . G2534R

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameEnerpac
DimensionUnitinch
GraingerSku46C570
UPC662005223060
UnitOfMeasureEA
Weight0.55
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height2.8
jsonUrlData924526ffbdad25e5923b
length3.2
moq, multiple, tierMinQty11
MPNG2534R
qtyInStock77
qtyInStockOverride-2
SKUG5177767
tierPrice1142.10
urlhttps://www.zoro.com/enerpac-pressure-gauge-0-to-6000-psi-14-in-nptf-stainless-steel-silver-g2534r/i/G5177767/
width3.1
Promotion RestrictionNot eligible for promotion
Connection Location, Gauge Connection Location, Process Connection LocationCenter Back
Item, Pressure Gauge TypeHydraulic Cylinder Pressure Gauge
Connection Size1/4 in FNPT
For Use WithHydraulics
Gauge ApplicationHigh Cycle
IncludesSafety Blowout Disc and Pressure Equalizing Membrane
Range0 to 6000 psi
Accuracy+/-1.5%
Material, Basic Gauge Case Material, Gauge Case Material, Gauge Case ColorStainless Steel
Color, Case ColorSilver
Length63mm
Diameter2-1/2"
Dial Size (In )2-1/2
Gauge Primary Range Values0 to 6000
Gauge Primary Range Units, Primary Units, Primary Scale Unitspsi
Gauge Connection Type, Process Connection TypeNPTF
Gauge Connection Size, Process Connection Size1/4 in
Liquid Filled, Blowout Safety Back, Requires Adapter, Liquid-Filled CaseYes
Gauge Accuracy+/-1.50%
Gauge Lens Material, Basic Gauge Lens Material, Lens MaterialGlass
Pressure and Vacuum Gauge TypePressure Gauge
Smallest Graduation100 psi
Gauge Panel Mountable, Calibration Certificate Included, Freeze Resistant Movement, Includes Vent Plug, Field Fillable, Adjustable Pointer, Removable Bezel, Panel-Mountable, Includes Mounting HardwareNo
Gauge Filled With, Gauge Case LiquidGlycerin
Gauge Nominal Dial Size, Nominal Dial Size2 1/2 in
SeriesG
Max Pressure (PSI)6000
Gauge Primary Range Smallest Graduation, Primary Scale Minor Graduations100
Required Gauge Adapter, Compatible Gauge AdapterEnerpac GA-3
Secondary Units, Secondary Scale Unitsbar
Scale TypeDual
Secondary Range0 to 400 bar
Hydraulic Pressure Gauge TypeDial Pressure Gauge for Hydraulic Systems
Sensor TypeBourdon Tube
Vibration ResistanceLiquid-Filled
IP/NEMA Rating, Hazardous Location RatingNot Rated
Gauge Wetted PartsStainless Steel / Copper
Pressure Range TypePressure
Case Depth1.46 in
Sensor MaterialCopper Alloy
Case Diameter2.5 in
Compatible Brand and SeriesENERPAC FM-25NG, ENERPAC NV-251
Primary Range0 to 6,000
Compatible Manufacturer Model NumberFM-25NG, NV-251
Case ConstructionCorrosion Resistant
Compatible Grainger Part Number30W697, 30X062
Accuracy ScaleFull Scale
Secondary Scale Minor Graduations10
Process Connection GenderMale
Dial ColorWhite
Secondary Pressure Range0 to 400 psi
Primary Pressure Range0 to 6,000 psi
Gauge Mounting TypeRear Mount
(hidden) association builderENERPAC G2534R
Country of Origin (subject to change)China
