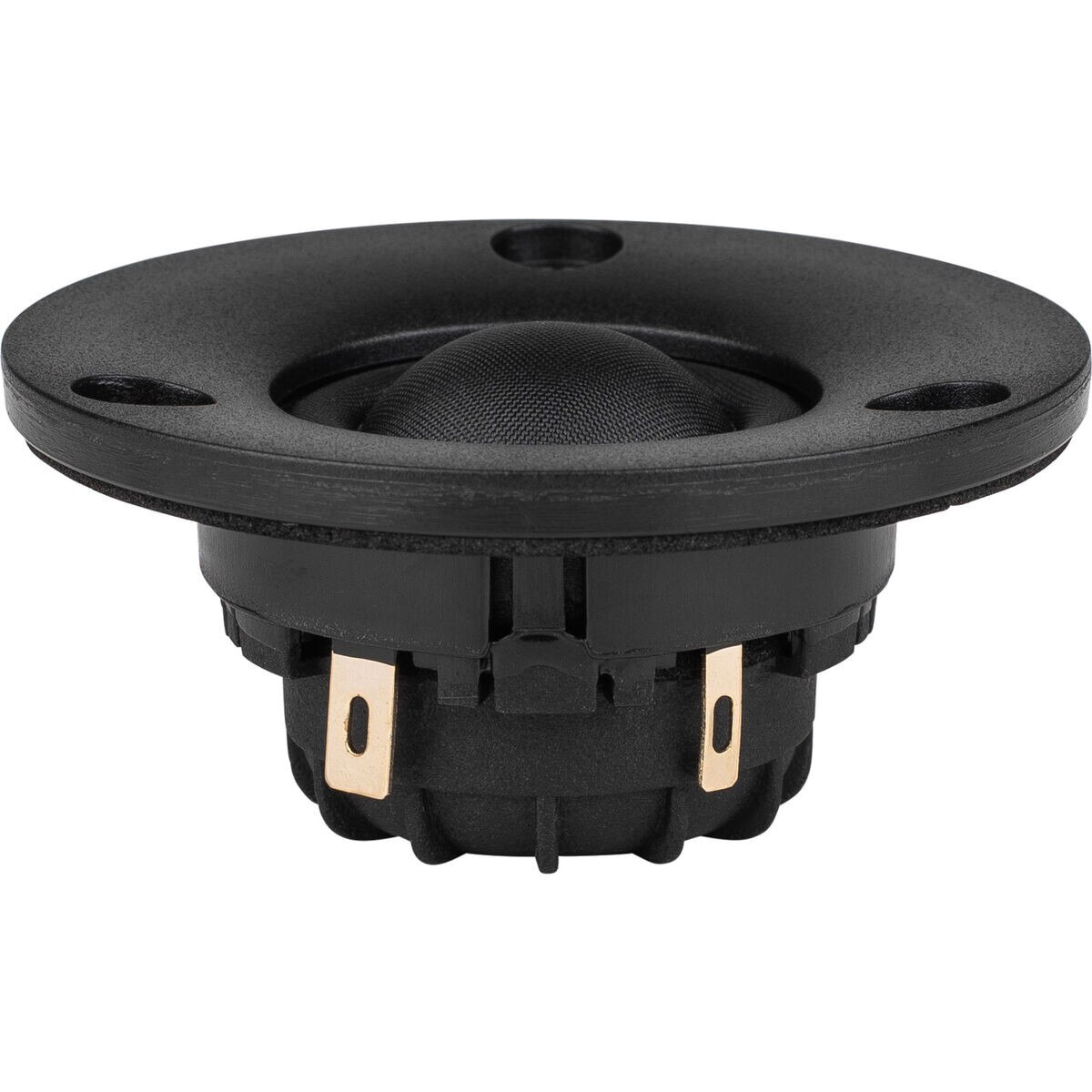

Wavecor TW022WA04 22mm Textile Dome Neodymium Tweeter with Rear Chamber
Wavecor TW022WA04 22mm Textile Dome Neodymium Tweeter with Rear Chamber. Part Number: 298-2098 by Wavecor.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Wavecor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Wavecor TW022WA04 22mm Textile Dome Neodymium Tweeter with Rear Chamber |
| UPC | 848864054506 |
| Weight | 0.15 |
| WeightUnit | lbs |
| depth, length | 1.02 |
| diameter, height, width | 2.56 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple | 1 |
| MPN, Model | TW022WA04 |
| qtyInStock | 0 |
| SKU, Part Number | 298-2098 |
| snippet | Wavecor TW022WA04 22mm Textile Dome Neodymium Tweeter with Rear Chamber. Part Number: 298-2098 by Wavecor. |
| Unit of Measure | Each |
| Cone / Dome Diameter | 0.75" |
| Cutout Diameter | 1.73 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 20 Watts |
| Impedance | 4? |
| Frequency Response | 2,000 to 30,000Hz |
| Sensitivity | 89.5dB 2.83V/1m |
| Resonant Frequency (Fs) | 825Hz |
| Voice Coil Inductance (Le) | 0.04mH |
| Mechanical Q (Qms) | 1.4 |
| Electromagnetic Q (Qes) | 1.9 |
| Total Q (Qts) | 0.8 |
| Overall Outside Diameter | 2.56" |
| Depth | 1.02" |
