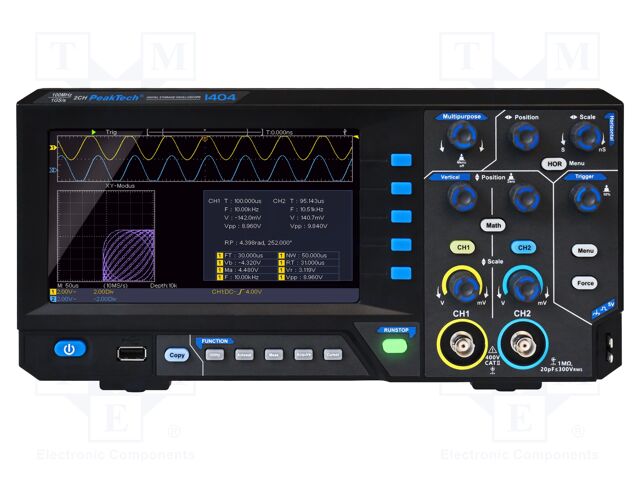

PEAKTECH P 1404 | Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7"

PEAKTECH P 1404 | Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7

PEAKTECH . P 1404

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPEAKTECH
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Oscilloscopes and Scopemeters
CategoryL4Digital Oscilloscopes
Extra Product NamePEAKTECH P 1404 | Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7"
atoms, moq, multiple1
jsonUrlData72c8841ca8988e6b665a6cbf21eaf18c.
jsonUrlData274def04bfea765f92af8
keywordsPEAKTECH, P 1404, PKT-P1404
MPNP 1404
qtyInStock, Number of channels2
SKUPKT-P1404
snippetPEAKTECH P 1404 | Oscilloscope: digital; DSO; Ch: 2; 100MHz; 1Gsps; 10kpts; LCD TFT 7
Type of oscilloscopedigital
Kind of oscilloscopeDSO
Band100MHz
Sampling1Gsps
Memory record length10kpts
Kind of display usedLCD TFT 7"
Trigger modesautomatic
Triggeralternate,
Trigger sourceCH1,
Time base5n...1ks/div
Max input voltage400V
Vertical resolution8bit
Input couplingAC, DC, GND
Trigger couplingDC
Horizontal accuracy?3%
InterfaceUSB
Rise time?3.5ns
Input impedance1M?/20pF
Input sensitivity5mV/div...5V/div
Measuring instrument featuresmathematical functions: addition, subtraction, division, multiplication and FFT
Plug variantEU
Power consumption15W
Operating temperature0...40?C
Body dimensions301x152x70mm
Softwareincluded
Display resolution800x480

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEPKT-P1404121
