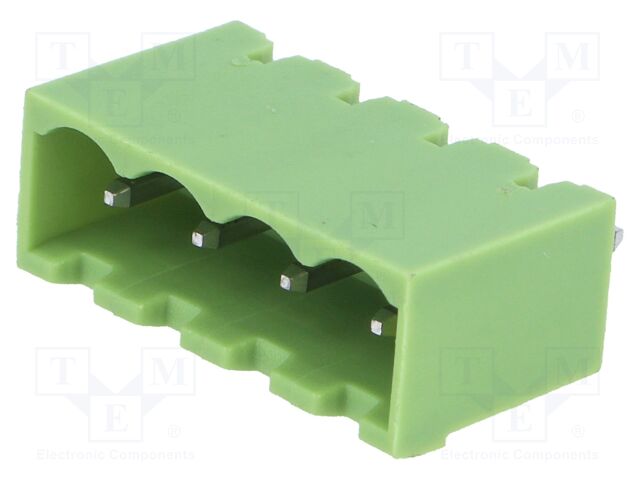

XINYA XY2500V-D(5.08)-4PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straight
XINYA XY2500V-D(5.08)-4PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straigh
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500V-D(5.08)-4PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straight |
| atoms | 1 |
| height | 12.0 |
| height_Attrib | Height |
| jsonUrlData | e271bf91e43cc682a0cdd59e67a34d3e. |
| jsonUrlData2 | 4b2d4f18e69fea9ed287 |
| keywords | XINYA, XY2500V-D(5.08)-4PIN, TBG-5-PW-4P-GN |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500V-D(5.08)-4PIN |
| qtyInStock | 15395 |
| SKU | TBG-5-PW-4P-GN |
| snippet | XINYA XY2500V-D(5.08)-4PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straigh |
| tierMinQty2 | 20 |
| tierMinQty3 | 100 |
| tierMinQty4 | 600 |
| tierMinQty5 | 2000 |
| tierPrice1 | 0.198 |
| tierPrice2 | 0.157 |
| tierPrice3 | 0.131 |
| tierPrice4 | 0.121 |
| tierPrice5 | 0.113 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of pins | 4 |
| Spatial orientation | straight |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Connector pinout layout | 1x4 |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Height | 12mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5-PW-4P-GN | 5 | 15395 | 5 | 5 @ $0.20, 20 @ $0.16, 100 @ $0.13, 600 @ $0.12, 2000 @ $0.11 |
