Blower

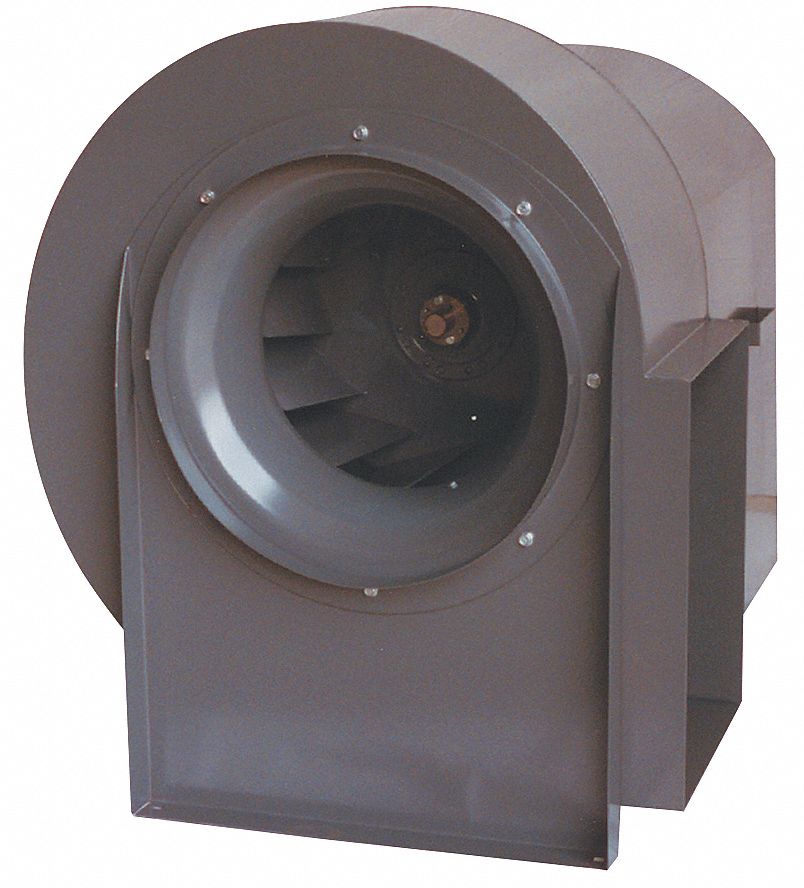

Dayton Blower Includes Epoxy Coated Steel Weather Proof Drive Cover 3C716-1 Each

Dayton . 3C716

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId4989
DimensionUnitinch
GraingerSku, MPN3C716
Extra Product Name, ItemBlower
UPC190735281147
UnitOfMeasureEA
Weight70.45
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height23.5
jsonUrlData924526ffbdad25e5923b
length28.4
moq, multiple, tierMinQty1, Number of Inlets1
qtyInStock24
qtyInStockOverride-2
SKUG1142127
tierPrice11343.52
urlhttps://www.zoro.com/dayton-blower-3c716/i/G1142127/
width18.8
Wheel Dia (In ), Wheel Diameter10 1/2 in
Dimension T (In )17 in
Dimension E (In )14 1/4 in
Wheel Width (In )5 5/16 in
Dimension H (In )7 7/8 in
Dimension D (In ), Outlet Width (In ), Outlet Width8 in
Dimension X (In )14 in
Width (In )17 3/16 in
Dimension K (In )9 1/8 in
Dimension S (In )20 1/2 in
Outlet Height (In ), Dimension C (In ), Outlet Height11 3/4 in
Inlet Dia (In ), Dimension P (In ), Dimension A (In ), Inlet Diameter12 7/8 in
Height (In ), Overall Height21 7/8 in
Dimension Y (In )7/16 in
Shaft Dia (In ), Shaft Diameter3/4 in
Depth (In ), Overall Depth27 in
Dimension N (In )6 in
Dimension M (In )19 7/8 in
Dimension F (In )10 3/4 in
Dimension B (In )13 in
Dimension J (In )6 3/4 in
Dimension L (In )8 1/16 in
Overall Width17 1/8 in
Manufacturer Warranty Length1 yr Limited
Outlet Size (H x W)11 3/4 in x 8 in
Outlet DiameterNot Applicable
Wheel Dimensions10 1/2 in Dia. x 5 1/4 in W
Wheel Width5 1/4 in
Housing FinishGray Baked Polyester Epoxy
Housing Material, Wheel MaterialSteel
TypeBackward Incline Belt Drive less Drive Package
RotationCW
Max Ambient Temp (F)104 Degrees F
Motor HP Range1/4 to 1 1/2
Bearing TypeBall
IncludesEpoxy Coated Steel Weather Proof Drive Cover
Max Inlet Temp (Deg F), Maximum Inlet Air Temperature250 Degrees F
Blower RPM1865/2050/2350/2685/2955/3385
StandardsAMCA Certified, NEC, OSHA
ApplicationHeating, Air Conditioning, Ventilating and Similar Systems where Low to Medium Pressures are Encountered
Number of Discharge Positions6
Maximum Fan Speed3,515 RPM
Outlet ShapeRectangular
Maximum Airflow2,281 cfm
Maximum Static Pressure5 in wc
Thermal Overload ProtectionYes
Minimum Airflow805 cfm
For Fan Speed (Motor Sold Separately)1,865 RPM to 3,515 RPM
Housing ColorGray
Electrical ConnectionGround Wire
Wheel/Housing MaterialSteel Wheel and Steel Housing

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG114212712411 @ $1343.52
Grainger3C71613511 @ $916.00
AmazonTPB007I9ZFOW111 @ $1043.97
AmazonTPB000LDNCKQ111 @ $1040.72
Raptor SuppliesAC8LMB111 @ $2207.62
sustainablesupply.comC11353421-211 @ $1095.84
grainger.caDMD3C716111 @ $1609.62
simsupply.comZO-G11421271511 @ $1558.48
