Order YA31LTC38FX90 by Burndy Cu Tubing Hylug, 1 Hole with Inspection Window, (Pack of 25 pcs) - US Mega Store

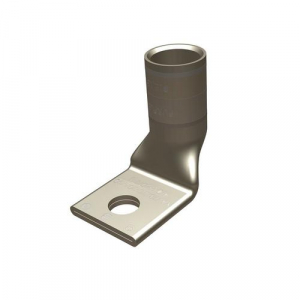

Burndy, YA31LTC38FX45, Cu Tubing Hylug, 1 Hole with Inspection Window, 250 Flex, 600V-35kV, 3/8" Stud, White.

Burndy . YA31LTC38FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA31LTC38FX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA31LTC38FX90 by Burndy Cu Tubing Hylug, 1 Hole with Inspection Window, (Pack of 25 pcs) - US Mega Store
diameter, length0.88
height1.98
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA31LTC38FX90
qtyInStockContact Us
snippetBurndy, YA31LTC38FX45, Cu Tubing Hylug, 1 Hole with Inspection Window, 250 Flex, 600V-35kV, 3/8" Stud, White.
tierPrice131.79
width1.29
width_AttribDimension - Pad Width inch
Color CodeWhite
Connector TypeTerminal
Die Index17;298
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction1-1/16 in
Dimension - B Length inch1.06 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - Height inch1.98 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm36 mm
Dimension - Length Overall inch1.40 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.88 in
Dimension - Pad Width inch1.29 in
Dimension - Strip Length inch1-1/8
Dimension - Z inch0.42 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size Range4/0 AWG
Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size Range250 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA31LTC38FX901Contact Us11 @ $31.79
