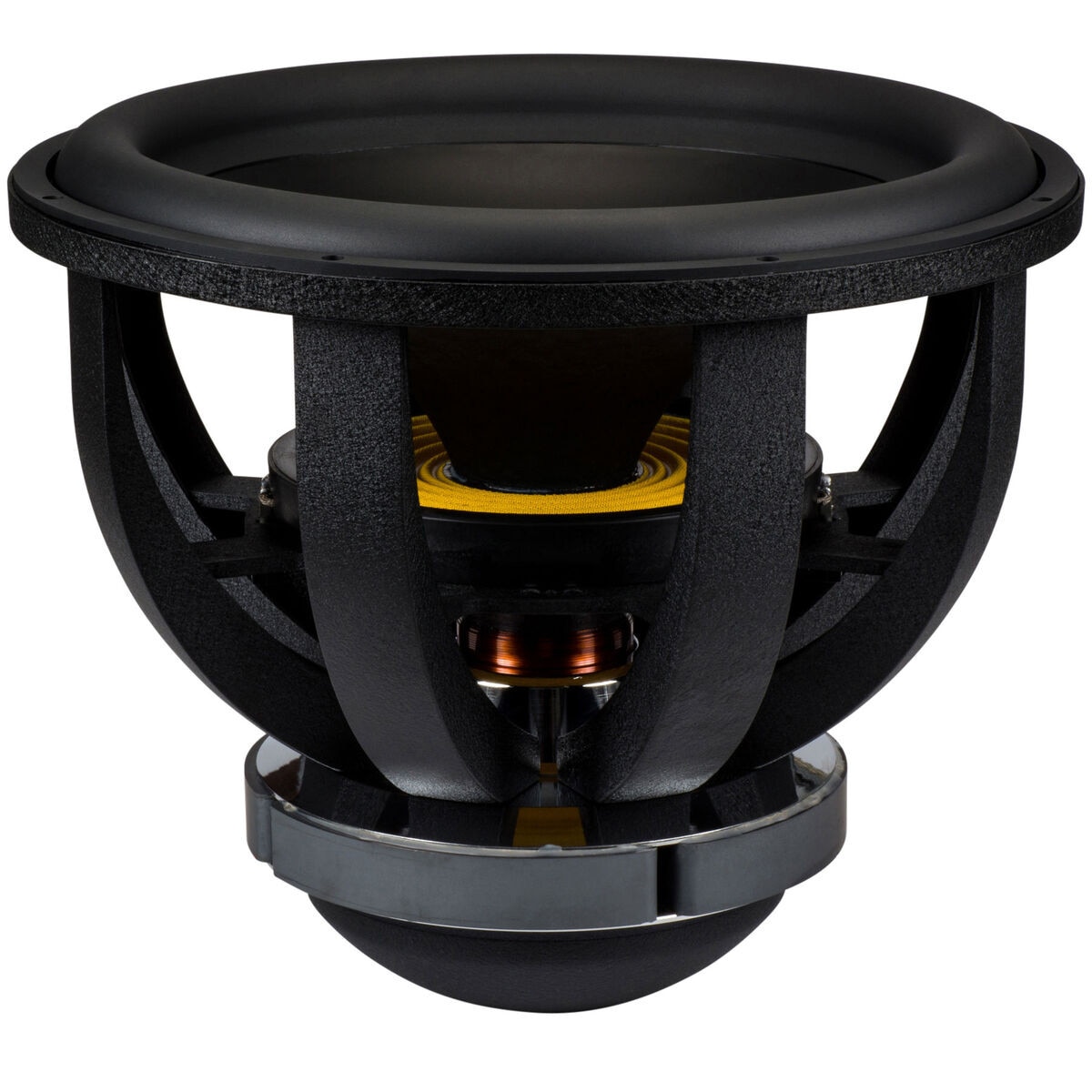

RE Audio XXX18-v2-4 18" Cast Frame DVC Subwoofer Driver 4+4Ohm

RE Audio XXX18-v2-4 18" Cast Frame DVC Subwoofer Driver 4+4Ohm. Part Number: 268-8155 by RE Audio.

RE Audio . XXX18-V2-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandRE Audio
DimensionUnitinch
Extra Product NameRE Audio XXX18-v2-4 18" Cast Frame DVC Subwoofer Driver 4+4Ohm
UPC611892992344
Weight108
WeightUnitlbs
depth, length14.75
diameter, height, width19.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNXXX18-V2-4
qtyInStock0
SKU, Part Number268-8155
snippetRE Audio XXX18-v2-4 18" Cast Frame DVC Subwoofer Driver 4+4Ohm. Part Number: 268-8155 by RE Audio.
ModelXXX18-v2-4
Unit of MeasureEach
Nominal Diameter18"
Power Handling (RMS)2000 Watts
Power Handling (MAX)4000 Watts
Impedance8?
Sensitivity86.2dB 2.83V/1m
Resonant Frequency (Fs)15.6Hz
DC Resistance (Re)4.2?
Mechanical Q (Qms)2.82
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.55
Compliance Equivalent Volume (Vas)17.02ft?
BL Product (BL)18.16T?m
Maximum Linear Excursion (Xmax)54mm
Cone MaterialKevlar
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter19"
Baffle Cutout Diameter17.375"
Depth14.75"
# Mounting Holes8
Sealed Volume3.65ft?
Vented Volume7.5ft?
Vented F334Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com268-815511
