Order YA27N by Burndy 10022598 Compression Connector, 3/0 AWG, 1/2" Stud, (Pack of 25 pcs) - US Mega Store

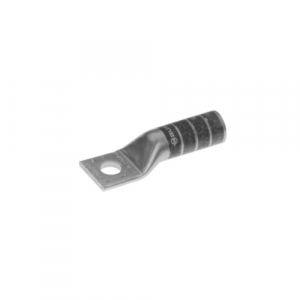

Burndy, YA27N, 10022598 Compression Connector, 3/0 AWG, 1/2" Stud Copper Compression lug, 1 Hole without Inspection Window, 3/0 AWG, 1/2" Stud, Long Barrel, Tin Plated.

Burndy . YA27N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA27N
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA27N by Burndy 10022598 Compression Connector, 3/0 AWG, 1/2" Stud, (Pack of 25 pcs) - US Mega Store
diameter, height, length0.62
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA27N
qtyInStock-2
qtySourceFieldMap
tierPrice121.47
width0.91
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index14
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
Dimension - B Length fraction1-1/2" in
Dimension - B Length inch1.50 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction (Inch), Dimension - Thread Size (Inch)1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm83 mm
Dimension - Length Overall inch3.25 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch0.62 in
Dimension - Pad Width inch0.91 in
Dimension - Strip Length inch1-9/16
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Thickness - Pad0.13 in
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size150 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range3/0 AWG
Certification - CSA Approved, UL ListedYes
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA27N1-211 @ $21.47
ZoroG20243872125251 @ $250.25
