Parker

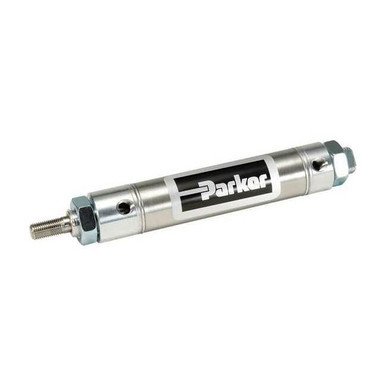

Round Air Cylinder 9/16 Inch Bore 1 Inch Stroke | 49J595 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.56DXPSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J595
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.09
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.62
jsonUrlData924526ffbdad25e5923b
length4.25
moq, multiple, tierMinQty11
MPN0.56DXPSR01.00
qtyInStock21
qtyInStockOverride-2
SKUG6222492
tierPrice125.14
urlhttps://www.zoro.com/parker-air-cylinder-916-in-bore-1-in-stroke-round-body-double-acting-056dxpsr0100/i/G6222492/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingDouble Acting
Bore Dia, Air Cylinder Bore Dia9/16 in
Max Pressure250 psi
Body Material304 stainless steel
Rod Dia, Dimension Cc0.188 in
Overall Length4.3 in
Rod Thread Length0.5 in
Pivot Hole Dia, Dimension Cd0.157 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountNose and Pivot
Port Size, Rod Thread Size, Dimension Kk#10-32 UNF
Air Cylinder TypeRound Body
Dimension L0.25 in
Temp Range-10 Degrees to 165 Degrees F
FeaturesNon-Switch Ready
FinishSilver
Nose Mount Thread, Dimension N17/16"-20
Dimension Cb, Dimension E0.31 in
End Cap Material, Piston MaterialAluminum
Dimension B0.437 in
Dimension A1/2 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG622249212111 @ $25.14
Grainger49J59511
Raptor SuppliesAJ2DZR111 @ $61.57
Applied Industrial10219322911
sustainablesupply.comC16851591-211 @ $35.71
Radwell0.56DXPSR01.0011
simsupply.comZO-G622249211411 @ $44.74
