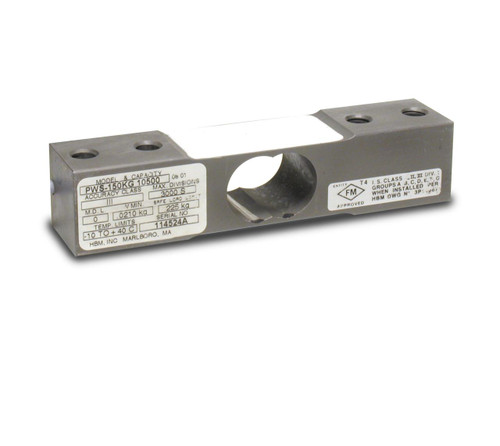

HBM PWS-150kg Stainless Steel Single Point Load Cell | Scales Plus

Check out the HBM PWS-150kg from Scales Plus! Contact the experts at Scales Plus for free product support from our trained technicians!

HBM . PWS-150KG

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHBM
DimensionUnitmm
Extra Product NameHBM PWS-150kg Stainless Steel Single Point Load Cell | Scales Plus
height30.7
height_AttribHeight
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length139.7
length_AttribLength
moq, multiple, tierMinQty11
MPNPWS-150KG
qtyInStock0
SKU69345
snippetCheck out the HBM PWS-150kg from Scales Plus! Contact the experts at Scales Plus for free product support from our trained technicians!
tierPrice1367.65
width30.2
width_AttribWidth
ModelPWS-150kg
ApprovalsFM, NTEP
CertificationNTEP Certified 1:3000 Class III
Capacity Rating150 kg
Safe Overload150% capacity
Length139.7 mm
Height30.7 mm
Width30.2 mm
Thredding3/8-16 UNC
Construction / FinishStainless steel
Cable Color CodeGreen = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
Rated Excitation5-10 VDC (15 V maximum)
Full Scale Output2 mV/V
Output Resistance359 (? 10) ohm
Input Resistance390 (? 15) ohm
Insulation Resistance5,000 megohms
Compensated Temperature Range14 ?F to 104 ?F (-10 ?C to 40 ?C)
Operating Temperature Range0 ?F to 150 ?F (-18 ?C to 65 ?C)
Seal TypeEnvironmentally sealed IP67
Combined Error0.03 % full scale
Cable Length10 ft
Cable Diameter0.190 PVC jacket

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.com69345111 @ $367.65
