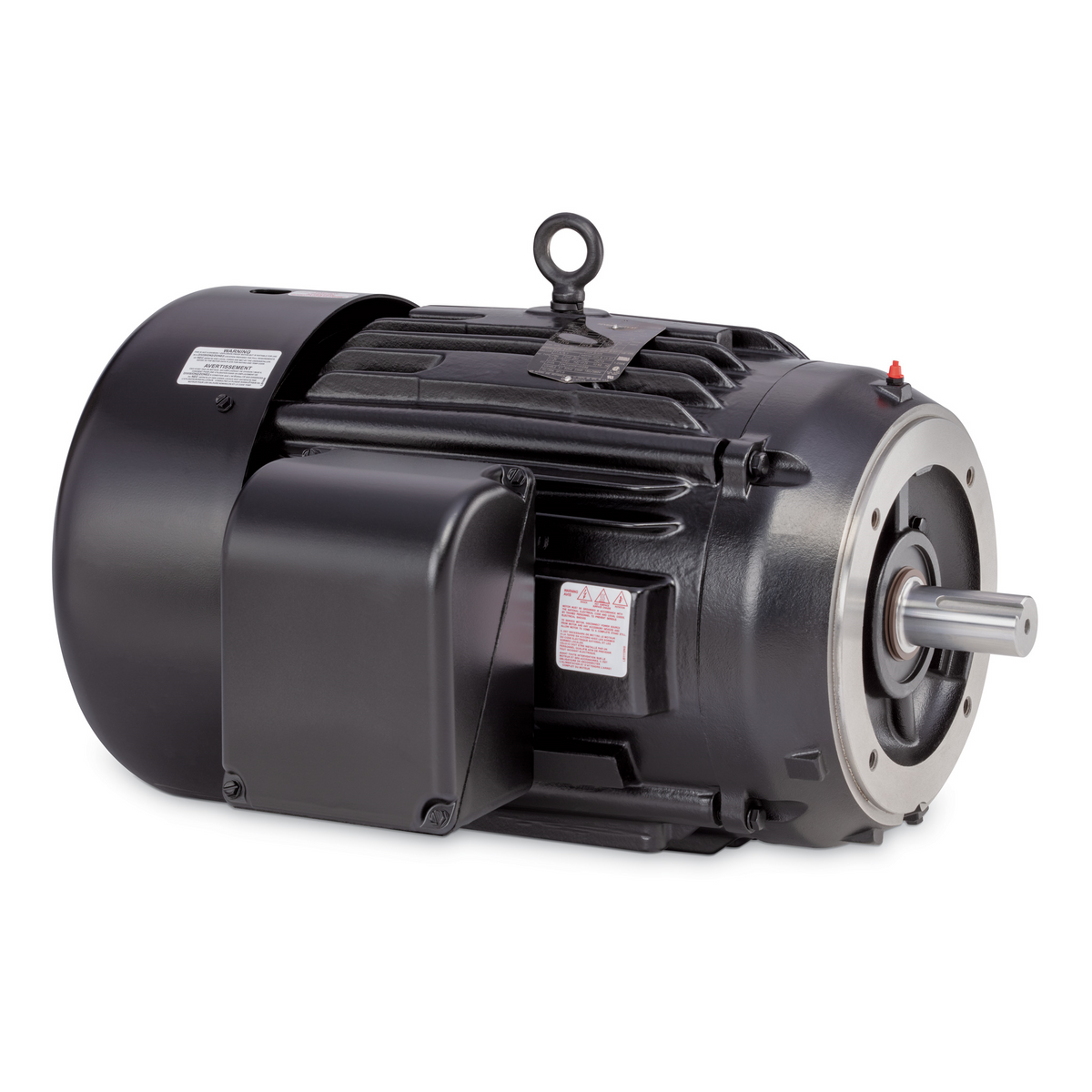

Baldor VXT3252TS Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 25RPM: 3520Volts: 230/460Amps: 62/56/28Hz: 60Phase: 3Frame: 284TSCEnclosure Material: IronMounting: C-FaceShaft Diameter: 1.625"Overall Length: 26.39"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 91.7%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cycle:
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor VXT3252TS Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 444 |
| WeightUnit | lbs |
| diameter, height, width | 1.625 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 26.39 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | VXT3252TS |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 3698.41 |
| Product Type | Three Phase |
| HP | 25 |
| RPM | 3520 |
| Amps | 62/56/28 |
| Hz | 60 |
| Phase | 3 |
| Frame | 284TSC |
| Enclosure Material | Iron |
| Mounting | C-Face |
| Shaft Diameter | 1.625" |
| Overall Length | 26.39" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 91.7% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 10-0000-1850 |
| Ship Weight | 444 lbs. |
