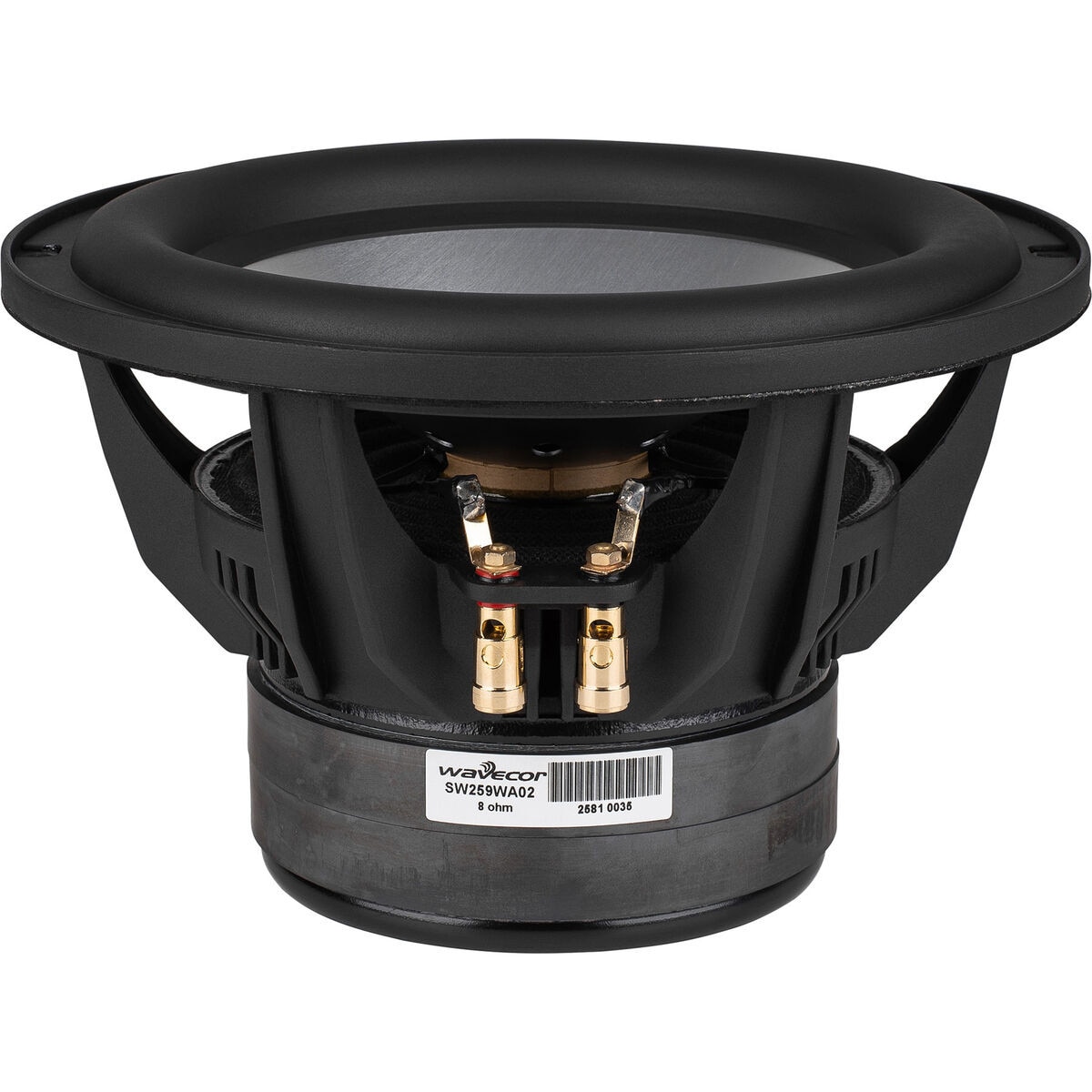

Wavecor SW259WA02 10-1/4" Aluminum Cone Subwoofer 8 Ohm

Wavecor SW259WA02 10-1/4" Aluminum Cone Subwoofer 8 Ohm. Part Number: 298-1070 by Wavecor.

Wavecor . SW259WA02

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandWavecor
DimensionUnitinch
Extra Product NameWavecor SW259WA02 10-1/4" Aluminum Cone Subwoofer 8 Ohm
UPC848864054360
Weight16.45
WeightUnitlbs
depth, length5.83
diameter, height, width10.2
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSW259WA02
qtyInStockBack-Ordered
SKU, Part Number298-1070
snippetWavecor SW259WA02 10-1/4" Aluminum Cone Subwoofer 8 Ohm. Part Number: 298-1070 by Wavecor.
Unit of MeasureEach
Nominal Diameter10"
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8?
Frequency Response24 to 400Hz
Sensitivity81.5dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)24Hz
DC Resistance (Re)3.4?
Voice Coil Inductance (Le)2.3mH
Mechanical Q (Qms)14.2
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)1.41ft?
Mechanical Compliance of Suspension (Cms)0.29mm/N
BL Product (BL)18.6T?m
Diaphragm Mass Inc Airload (Mms)158g
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)312cm?
Cone Material, Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Overall Outside Diameter10.20"
Baffle Cutout Diameter8.94"
Depth5.83"
# Mounting Holes8
Sealed Volume0.58ft?
Sealed F344.3Hz
Vented Volume1ft?
Vented F326.9Hz
