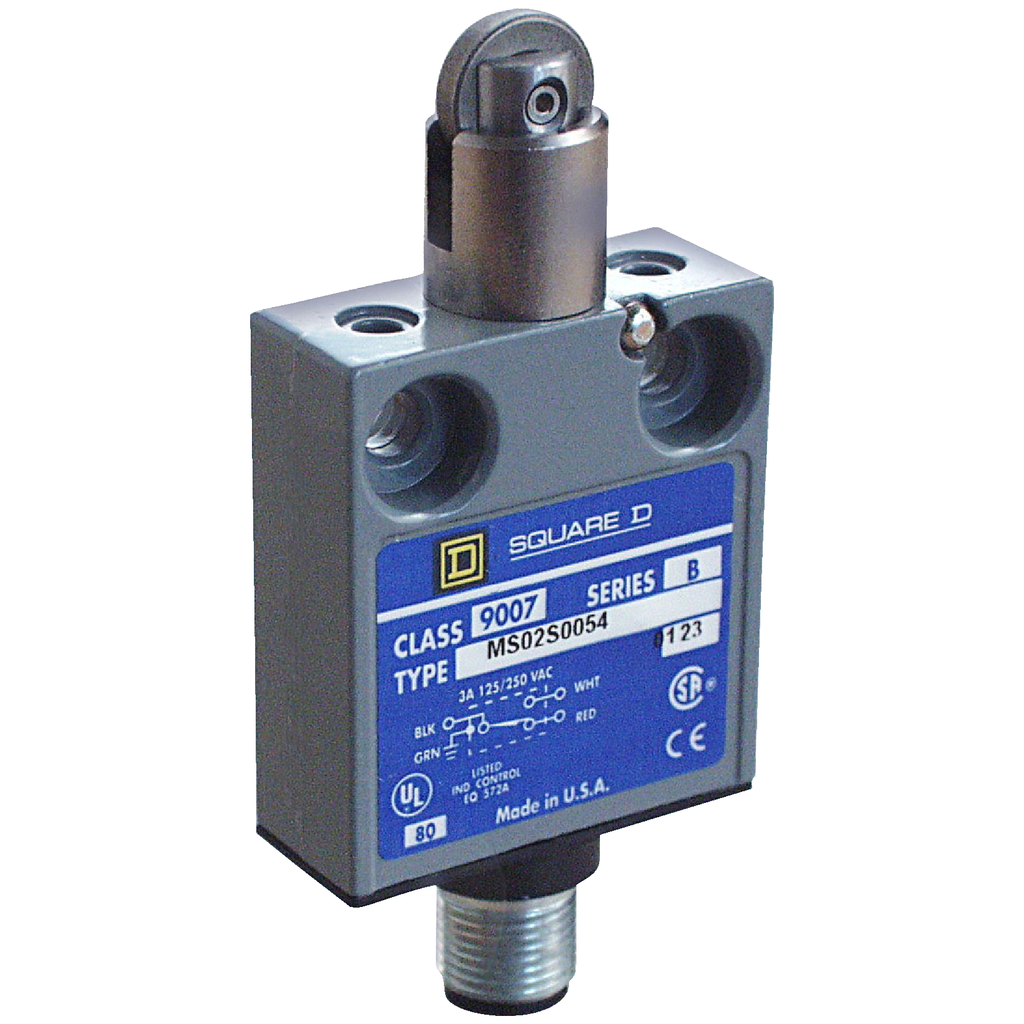

Limit switch, 9007, 240 VAC 3 amp ms +options | Mayer Electric

Mayer Electric Supply . 9007MS02G0054

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007, 240 VAC 3 amp ms +options | Mayer Electric
UPC785901711636
Weight1.2
WeightUnitlbs
Weight_AttribNet Weight
depth, length0.62
height3.5
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-240VAC-3-AMP-MS-OPTIONS-785901711636
jsonUrlData2d0ddd471-bfce-4e2e-acfc-abd200618301
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Poles, Sale Per Indivisible Quantity1
MPN9007MS02G0054
qtyInStock0
SKUSQD9007MS02G0054
tierPrice1225.50
width1.56
width_AttribWidth
Series Nameminiature potted
Range Of Product9007
Body Typefixed
Body Materialcast zinc
Sensor Designminiature
Product Or Component Typelimit switch
Materialmetal
Device Short Name9007MS/ML
Head Typeplunger head
Warranty18 months
Switch Actuationby 30? cam
Type Of Approachlateral approach, 2 directions
Contacts Type And CompositionNC-NO
Height1.75-1.75 in
Movement Of Operating Headlinear
Terminals Description Iso N?1(1)gnd || (3-4)NC || (2-4)NO
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current100 mA 125 V AC || 30 mA 28 V DC
Fixing Modeby the body
Contacts Materialgold flashed contacts
Mechanical Durability10000000 cycles
Maximum Force For Tripping80 ozf
Type Of Operatorspring return parallel roller plunger steel -
[Ithe] Conventional Enclosed Thermal Current3 A
Contact FormForm C
Switch FunctionSPDT
Electrical Connectionmale connector M12 micro DC type 4 pins bottom
MarkingCE || CSA || UL
Width1.56 in
Depth0.62 in
Electrical Durability100000 cycles
Net Weight1.2 lb(US)
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationsCE || UL || CSA
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-220 ?F
StandardsE78403 || LR 25490 Class 32 11 03
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
Shock Resistance35 gn 9 ms IEC 60068-2-27
Vibration Resistance10 gn 75-1200 Hz)IEC 60068-2-6
Protective Treatmentepoxy powder coat
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007MS02G0054111 @ $225.50
