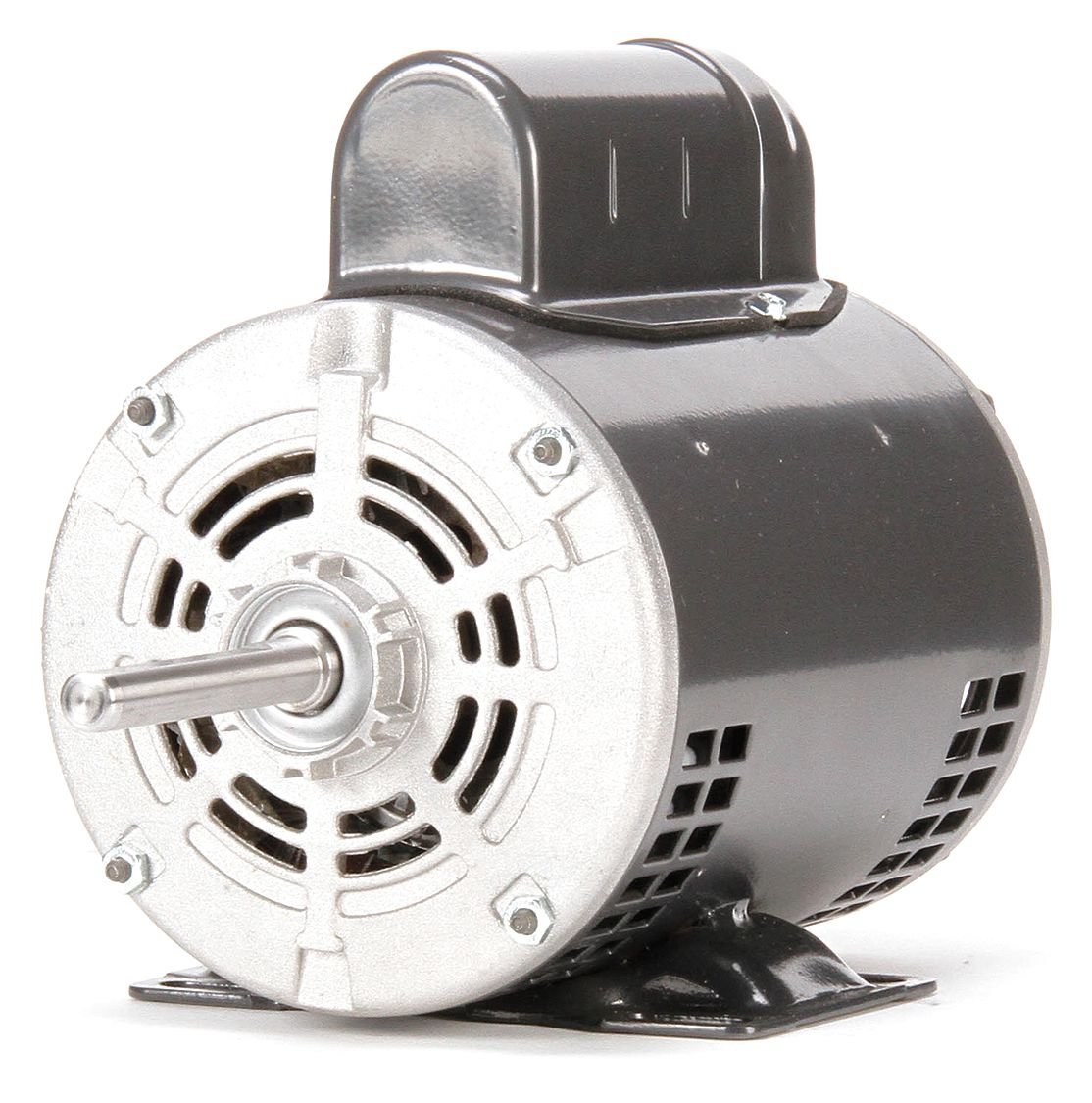

Direct drive blower motor permanent split capacitor motor design open air-over motor enclosure design 1/2 hp 860 nameplate rpm voltage 115/230 6.0/3.0 full load amps 60 hz 1 phase 48z frame motor service factor 1.00 max ambient temp 40 degrees c ins. Class b duty continuous no of speeds 1 motor mounting type rigid base motor mounting position all angle motor bearings ball motor thermal protection auto motor shaft rotation cw/ccw length less shaft 8-9/16 in.
