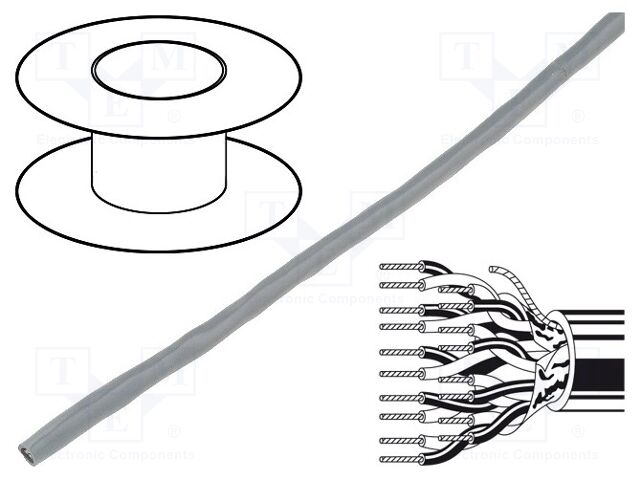

BELDEN XX9503.01305 | Wire; RS232; 3x2x24AWG; stranded; Cu; shielded,Al-PET foil; PVC
BELDEN XX9503.01305 | Wire; RS232; 3x2x24AWG; stranded; Cu; shielded,Al-PET foil; PV
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BELDEN |
|---|---|
| CategoryL1 | Wires and Cables |
| CategoryL2 | Cables |
| CategoryL3 | Data Transmission Cables |
| CategoryL4 | Serial Bus Cables |
| DimensionUnit | mm |
| Extra Product Name | BELDEN XX9503.01305 | Wire; RS232; 3x2x24AWG; stranded; Cu; shielded,Al-PET foil; PVC |
| atoms, moq, multiple | 1 |
| diameter, length, width | 5.89 |
| jsonUrlData | edcf3f0d6cfb01555886bfffbef64a22. |
| jsonUrlData2 | 048269570742ffe34a44 |
| keywords | BELDEN, XX9503.01305, 9503, Wires and Cables, Cables, Data Transmission Cables, Serial Bus Cables |
| length_Attrib, width_Attrib | Cable external diameter |
| MPN | XX9503.01305 |
| qtyInStock | 0 |
| SKU | 9503 |
| snippet | BELDEN XX9503.01305 | Wire; RS232; 3x2x24AWG; stranded; Cu; shielded,Al-PET foil; PV |
| Type of wire | data transmission |
| Cable application | indoor, |
| Core structure | stranded |
| Kind of core | Cu, |
| Number of cores | 6 |
| No of pairs | 3 |
| Core diameter | 24AWG |
| Core marking | colours with colour repetition |
| Shield structure | Al-PET foil, |
| Wire insulation material | PVC |
| Insulation colour | chrome |
| Operating temperature | -30...80?C |
| Cable features | twisted pair conductors |
| Package contents | 305m |
| CPR standard | E |
| Cable external diameter | 5.89mm |
| Rated voltage | 300V |
| Earth core | none |
| Conform to the norm | UL 1685 |
| Kind of material | no flame propagation |
