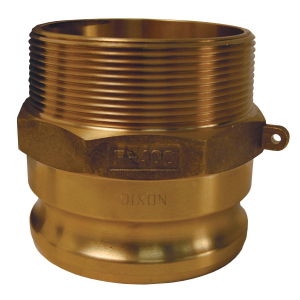

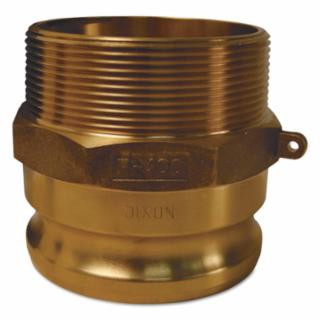

Dixon G300-F-BR Global Cam & Groove Type F Adapter x Male NPT | MROSupply.com

'Adapter, Body Material Forged Brass, Coupling Type F, Connection Type Male Adapter x MNPT, Coupler Size 3 In., Pipe Size 3 In., Max. Pressure 125 psi, Gasket Material Buna-N, Standards A-A-59326D'

Cam and Groove Adapter, Plug, Body Material Brass, Type F, Coupling Size 3 in, Male, Connection Type NPT, Hose Fitting Size 3 in, MNPT, Max. Working Pressure @ 70 F 125 psi, Plug Outside Dia. 3 19/32 in, Overall Length 3 15/16 in, Includes Locking Arm No, Thread Size 3 in -8, Plug Length 2 in

Dixon, G300-F-BR, 3" Global Cam & Groove Type F Adapter Forged Brass x Male NPT Applications Designed for use with liquids Specifications Designed to interchange with all products produced to A-A-59326D Features Made to Dixon specifications and branded Dixon How it works To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. Safety notes Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
