Zoro Select

Zoro Select . BX-POEV 125XR-SG

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku44YU36
UPCNone
UnitOfMeasureEA
Weight1.8
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
height6
jsonUrlData924526ffbdad25e5923b
length5
moq, multiple, tierMinQty1, Number of Wheels1
MPNBX-POEV 125XR-SG
qtyInStock8
qtyInStockOverride-2
SKUG0385887
tierPrice144.27
urlhttps://www.zoro.com/zoro-select-rgd-plate-caster-rubber-5-in-330-lb-bx-poev-125xr-sg/i/G0385887/
width3.5

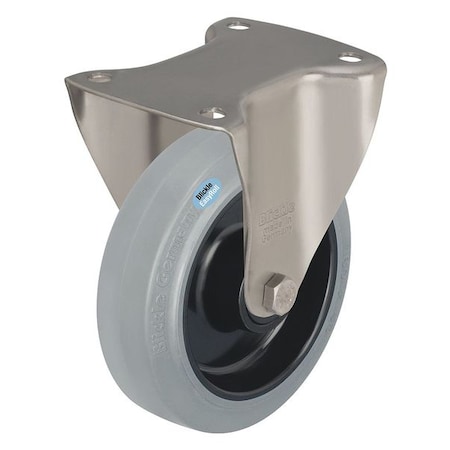

ItemRigid Plate Caster
Caster Brake Included, Extended Lead, Thread Guards, Caster Temp Range Available, Includes Thread Guards, ESD ConductiveNo
Caster Load Rating RangeMedium Duty
Caster Sub-TypeRigid
Caster Product GroupRigid Caster
Load Rating330 lb
Caster Wheel Shape, Tread Shape, TreadStandard
Caster Wheel/Tread MaterialEasyRoll Elastic Solid Rubber
Wheel Dia125 mm
Wheel Width40 mm
Wheel/Tread MaterialRubber
Overall Height150 mm
Wheel/Tread Hardness RatingSoft
Wheel Bearing Type, Caster Wheel BearingsRoller
Mounting Height5 7/8 in
Mounting Plate Size3 3/8 in x 3 15/16 in
Mounting Plate Bolt Hole PatternD
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing60 mm x 80 mm
Mounting Bolt DiaM8
Number of Mounting Holes4
Caster Brake Type, Caster Break TypeNo Brake Included
Swivel Lock Type, Caster Swivel Lock TypeNo Lock Included
Non-MarkingYes
Frame Finish, Caster Frame Material, Frame MaterialStainless Steel
Wheel Core Material, Caster Core MaterialNylon
Core ColorBlack
ApplicationRetail, Industrial, Commercial
FeaturesCorrosion Resistant
StandardsRoHS, ICWM
Caster Plate Thickness2.5 mm
Caster Plate Size85 mm x 100 mm
Replacement WheelMfr. No. POEV 125/12XR-SG
Plate Thickness0.098"
Plate Caster Bolt Hole Pattern, Caster Plate Hole PatternA
Plate Size3-15/16" x 3-3/8"
Durometer, Wheel/Tread Hardness65 Shore A
Wheel Color, Wheel/Tread Color, Tread ColorGray
Load Rating Range-
Load Capacity150 kg
Caster Temp Range-25 Degrees To 80 Degrees C
Caster Mounting TypePlate
SeriesBX Series
System of MeasurementMetric
Resistant ToHigh Chemical Resistance To Many Aggressive Substances, Except Oils
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG03858871811 @ $44.27
