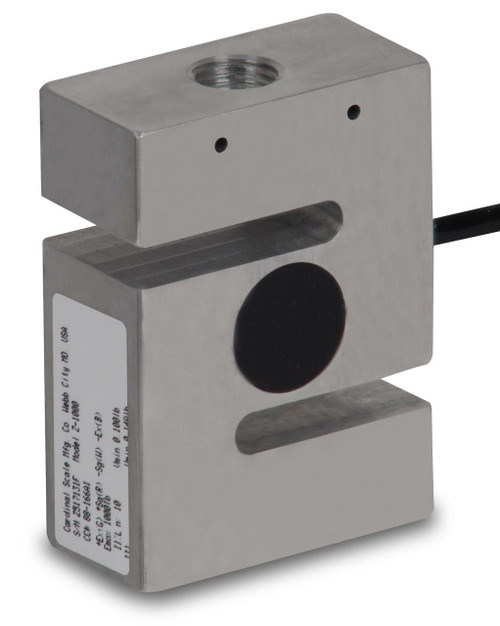

Cardinal Detecto Z-50 50 lb S-Beam Load Cell, NTEP - Scales Plus

Buy the top selling Detecto Z-50 from Scales Plus and receive free product support from our trained technicians for life!

Detecto . Z-50

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDetecto
DimensionUnitinch
Extra Product NameCardinal Detecto Z-50 50 lb S-Beam Load Cell, NTEP - Scales Plus
height3.0
height_AttribHeight
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length1.5
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKU, ModelZ-50
qtyInStock0
snippetBuy the top selling Detecto Z-50 from Scales Plus and receive free product support from our trained technicians for life!
tierPrice1369
width0.5
width_AttribWidth
NTEPYes
CertificationNTEP Approved Class III 1:5000 and IIIL 1:10,000
Capacity50 lb
Safe Overload150% capacity
Ultimate Overload300% capacity
Length1.5"
Height3"
Width0.5"
Hole Threading#10????-32 NF
ConstructionAluminum
Cable Color CodeGreen = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
Rated Excitation5-10 VDC (maximum of 15 V)
Full Scale Output2 mV/V ? 10%
Excitation Terminal Resistance415 ? 12 ohms
Signal Terminal Resistance350 ? 5 ohms
Insulation Resistance5000 megohms
Seal TypeEnvironmentally sealed
IP RatingIP67
Cable Length2.5 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comZ-50111 @ $369.00
