OD1238-48HBIP69K Orion Fans | Fans, Thermal Management | DigiKey

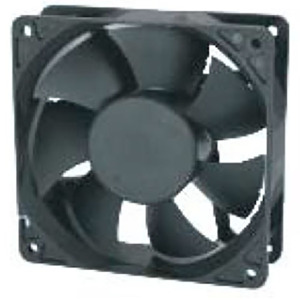

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| CategoryL1, Category | Fans, Thermal Management |
| CategoryL2 | Fans |
| CategoryL3 | DC Brushless Fans (BLDC) |
| DimensionUnit | mm |
| Extra Product Name | OD1238-48HBIP69K Orion Fans | Fans, Thermal Management | DigiKey |
| Weight | 0.572 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN, Manufacturer Product Number | OD1238-48HBIP69K |
| packaging, Package | Box |
| qtyInStock | 109 |
| SKU | 12756337 |
| snippet, Detailed Description | Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m?/min) 2 Wire Leads |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierPrice1 | 46.59000 |
| tierPrice2 | 42.55300 |
| tierPrice3 | 40.93760 |
| tierPrice4 | 38.24420 |
| tierPrice5 | 35.28160 |
| tierPrice6 | 34.74292 |
| width | 38.0 |
| width_Attrib | Width |
| Digi-Key Part Number | 1053-OD1238-48HBIP69K-ND |
| Description | FAN AXIAL 120X38MM 48VDC WIRE |
| Manufacturer Standard Lead Time | 19 Weeks |
| Series | OD1238-IP69K |
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 123.9 CFM (3.47m?/min) |
| Static Pressure | 0.469 in H2O (116.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Noise | 44.1dB(A) |
| Power (Watts) | 14 W |
| RPM | 2895 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -4 ~ 149?F (-20 ~ 65?C) |
| Approval Agency | CE, cURus, TUV, UR |
| Current Rating (Amps) | 0.290A |
| Voltage Range | 30 ~ 52VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 65000 Hrs @ 45?C |
| Base Product Number | OD1238 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 12756337 | 1 | 109 | 1 | 1 @ $46.59, 10 @ $42.55, 25 @ $40.94, 50 @ $38.24, 100 @ $35.28, 250 @ $34.74 | |
 Newark | 45AJ0123 | 1 | 16 | 1 | 1 @ $30.36, 5 @ $30.36, 10 @ $30.36, 25 @ $30.36, 50 @ $30.36, 100 @ $30.36 |
 Mouser | 670-OD1238-48HBIP69K | 1 | 7 | 1 | 1 @ $34.59, 10 @ $31.59, 100 @ $26.19, 1000 @ $24.75, 10000 @ $25.79 |
| 10142183 | 1 | 1 | 1 @ $42.70 | ||
| us.rs-online.com | 72127384 | 1 | 1 | 1 @ $46.49, 10 @ $42.46, 20 @ $40.85, 50 @ $38.16, 100 @ $35.20, 200 @ $34.67 |
