Y201132V203NQ C&K | Switches | DigiKey

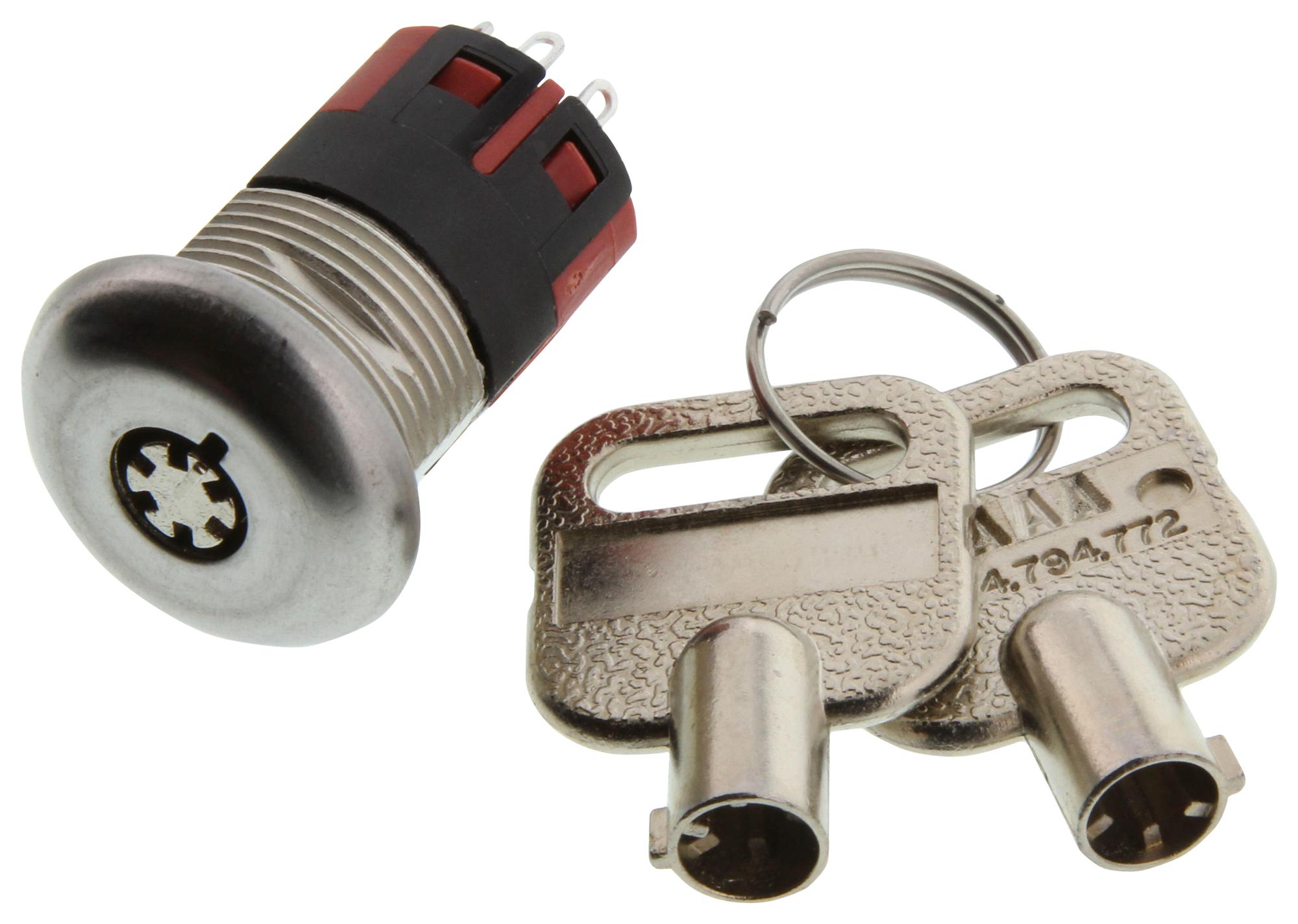

The C&K Switch Key Lock DPDT 90° Tubular Key is a panel-mount switch with a solder lug connection. It has a 4A current rating at 250VAC and 28VDC. This switch is designed for use in a variety of applications, and is typically mounted to a panel.

Keylock Switch 2 Position DPDT 4A (AC/DC) 125 VAC 28 VDC Panel Mount

C&K . Y201132V203NQ

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrC&K
Extra Product NameY201132V203NQ C&K | Switches | DigiKey
atoms, minimum, moq, multiple1
MPNY201132V203NQ
qtyInStock291
SKUCKC8047-ND
Part StatusActive
CircuitDPDT
Switch FunctionOn-On
Contact TimingNot Specified
Current Rating (Amps)4A (AC/DC)
Actuator TypeTubular Key
Key Removable Positions1 only
Angle of Throw90?
Contact MaterialCopper
Contact FinishSilver
Mounting TypePanel Mount

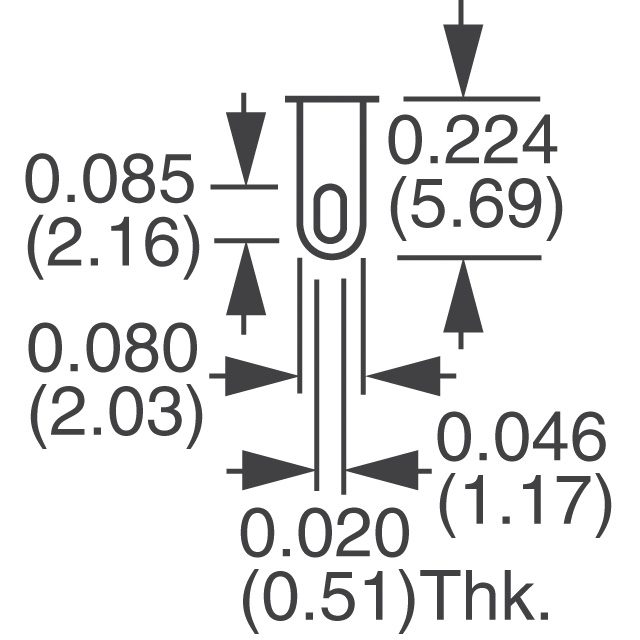

Termination StyleSolder Lug
Panel Cutout DimensionsCircular - 19.30mm Dia
Features, Operating Temperature, Mechanical Life-
Depth Behind Flange29.34mm
Electrical Life10,000 Cycles
Number of Positions2
Voltage Rating - AC125 V
Voltage Rating - DC28 V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-KeyCKC8047-ND12911
Onlinecomponents.comY201132V203NQ111 @ $15.90, 10 @ $15.58, 25 @ $14.76, 50 @ $14.15, 100 @ $13.77, 250 @ $12.60
RS Online863702611
Digi-Key484284146911 @ $18.11, 468 @ $15.52
Newark36AH039021621610 @ $30.24
RS Delivers863-7026120211 @ $16.61
Allied Electronics7012860311
Hawk ElectronicsY201132V203NQ216216216 @ $64.00
Newark39M211510862910810 @ $30.90
Digi-Key146502714682664681 @ $21.70, 10 @ $19.70, 36 @ $18.82, 72 @ $17.82, 108 @ $17.16, 252 @ $16.05, 468 @ $13.28
us.rs-online.com70128603110911 @ $26.08, 10 @ $25.50, 25 @ $24.23
ebay.comY201132V203NQ1-21
