Ifm

http://cdn.shopify.com/s/files/1/0332/9992/2988/products/35T575_AW03_745ab387-1a43-437b-988f-3cb5d81af23e_1024x.jpg

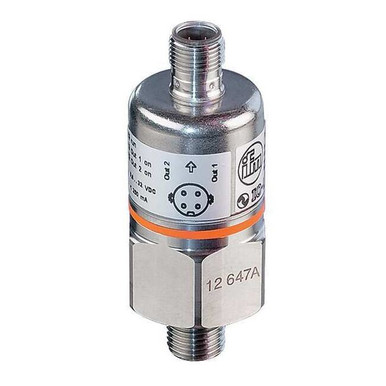

Ifm . PX3223

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIfm
DimensionUnitinch
GraingerSku35T583
UPCNone
UnitOfMeasureEA
Weight0.35
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginRO
height1.8
jsonUrlData924526ffbdad25e5923b
length5
moq, multiple, tierMinQty11
MPNPX3223
qtyInStock10
qtyInStockOverride-2
SKUG5900781
tierPrice1321.00
urlhttps://www.zoro.com/ifm-transmitter-0-500psi-96-32vdc-px3223/i/G5900781/
width3.4
Item, Transmitter TypePressure Transmitter
Range Values - Transmitter0 to 500
Range Units - Transmitter, Pressure Unitspsi
Accuracy - Transmitter+/-0.75% Full Scale
Electrical Connections - Transmitter4 Pin M12 Connector
Power Required - Transmitters9.6 to 32V DC
Process Connection Size - Transmitter, Process Connection Size1/4 in
Process Connection Type - TransmitterMNPT
Operating Temp - Transmitter, Operating Temp-25 Degrees to 90 Degrees C
Loop Resistance720 ohms @ 24V DC
Range0 to 500 psi
Wiring Entry - Transmitter1/2 in FNPT
Accuracy+/-0.75% of Full Range
Output4 to 20ma
Process Connection1/4 in Male NPT
Power Required9.6 to 32VDC
Housing, Housing Material, Fitting MaterialStainless Steel
Output - Transmitter4 to 20mA DC
Thermal Error0.3%
Maximum Loop Resistance720 Ohm Max
Electrical Connection, Electrical Connections4-Pin M12 Connector
Minimum Pressure0 psi
Number of Wires2
Explosion/Fire Proof, Intrinsically SafeNo
SeriesPX
Overall Height79.5 in
Maximum Operating Temperature90 Degrees C
Process Connection GenderMale
Maximum Pressure500 psi
(hidden) connection builder4-Pin M12 Connector x 1/2 in FNPT Conduit Connection
Minimum Operating Temperature-25 Degrees C
Overall Width30 in
Wiring Entry1/2 in FNPT Conduit Connection
Overpressure2,175 psi
Type of PressureRelative
Response Time3 msec
Burst Pressure5,075 psi
Safety RatingClass III
IP RatingIP65
Process Connection TypeNPT
Operating Temperature-25 Degrees C to 90 Degrees C
Country of Origin (subject to change)Romania

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG590078111011 @ $321.00
Grainger35T58311
sustainablesupply.comC28908451-211 @ $251.90
simsupply.comZO-G590078111111 @ $405.26
