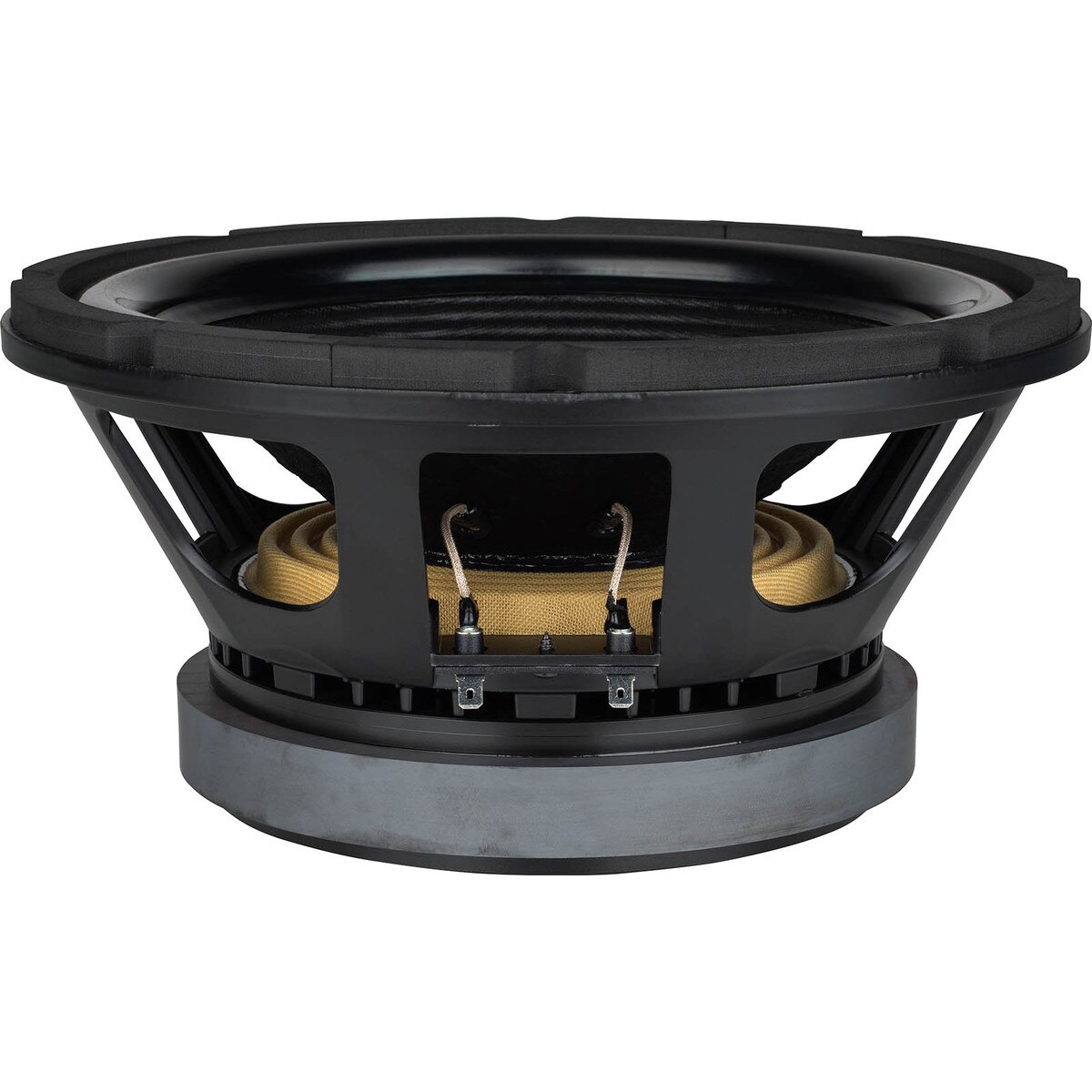

Ciare 12.00SW-4 12" High Power Subwoofer

Ciare 12.00SW-4 12" High Power Subwoofer - Part Number: 293-148 by Ciare.

Ciare . 12.00SW-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare 12.00SW-4 12" High Power Subwoofer
UPC848864073224
Weight26.1
WeightUnitlbs
depth, length5.87
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12.00SW-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-148
snippetCiare 12.00SW-4 12" High Power Subwoofer - Part Number: 293-148 by Ciare.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance4?
Frequency Response30 to 200Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)29Hz
DC Resistance (Re)3.3?
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)2.3
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)1.94ft?
BL Product (BL)19.5T?m
Diaphragm Mass Inc Airload (Mms)201g
Maximum Linear Excursion (Xmax)13.5mm
Surface Area of Cone (Sd)523cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.87"
# Mounting Holes8
Sealed Volume0.375ft?
Sealed F381.5Hz
Vented Volume2.5ft?
Vented F328.4Hz
