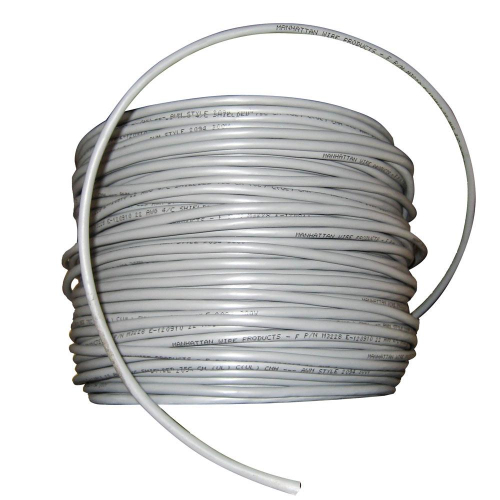

Cobra Wire 22/4 Shielded Comm Cable - NMEA 0183 - 500' - Grey X-079330-007COBRA WIRE & CABLE

PRODUCT TITLE: Cobra Wire & Cable X-079330-007 Cobra Wire 22/4 Shielded Comm Cable - NMEA 0183 - 500' - Grey SHORT DESCRIPTION: Cobra Wire 22/4 Shielded Comm Cable - Nmea 0183 FULL DESCRIPTION: 22/4 Shielded Comm Cable - NMEA 0183 - 500' NEC RATING: CMP, NEC Article 800 APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music) Construction Parameters: Conductor 22 A WG Bare Copper Stranding 7 x 30 Insulation Material Flex Plenum PVC Insulation Thickness 0.008" Nom. Number of Conductors: 4 (2 Shielded) (2 Unshielded) Shield 100% Aluminum Polyester Foil Drain Stranded Tinned Copper Jacket Material Flex Plenum PVC Jacket Thickness 0.015" Nom. Overall Cable Diameter 0.154" Nom. Approximate Cable Weight 19 lbs/1M' Nom. Flame Rating NFP A 262 Flame Test Electrical & Environmental Properties: Temperature Rating -10°C To +60°C Operating Voltage 300 V RMS Max. Capacitance Between Conductors@ 1 KHz 55 pt/ft Nom. Capacitance Between Conductors to Shield@ 1 KHz 99 pt/ft Nom. DC Resistance per Conductor@ 20° C 17 Ohms/1M' Nom. Insulation Colors: Black, Red, White, Green Jacket Color: Grey RoHS Compliant Yes Mechanical Properties: Max. Recommended Pull Tension 51lbs Min. Bend Radius (Install) 1.6" BRAND: Cobra Wire & Cable CWR ELECTRONICS PART #: 49237 MFGR PART #: X-079330-007 CONDITION: NEW WEIGHT: 13 UPC: QTY ON HAND: 100 STOCK STATUS: Stocked ACCESSORIES INCLUDED: PRODUCT TYPE: Electrical | Wire GOOGLE PRODUCT CATEGORY: Hardware > Electrical Supplies > Electrical Wires SPECS: Color = Grey | Number of Conductors = 4 | Shielded = Yes | Tinned = Yes ANMS PART #: CWR-10043960
