BZT52C15S-TP Micro Commercial Co | Discrete Semiconductor Products | DigiKey

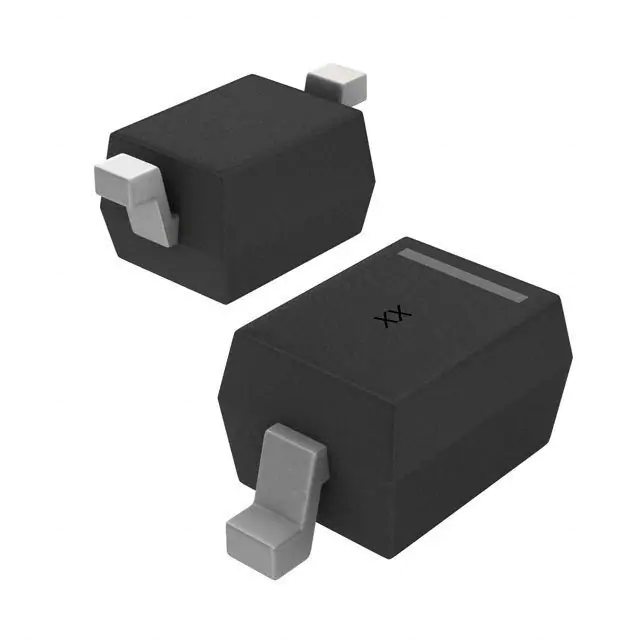

Zener Diode 15 V 200 mW ?6% Surface Mount SOD-323
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Micro Commercial Co |
|---|---|
| Extra Product Name | BZT52C15S-TP Micro Commercial Co | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping, qtyInStock | 0 |
| MPN | BZT52C15S-TP |
| SKU | 806086 |
| snippet | Zener Diode 15 V 200 mW ?6% Surface Mount SOD-323 |
| tierMinQty10 | 75,000 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierMinQty9 | 30,000 |
| tierPrice1 | 0.29000 |
| tierPrice10 | 0.03300 |
| tierPrice2 | 0.23600 |
| tierPrice3 | 0.12540 |
| tierPrice4 | 0.08250 |
| tierPrice5 | 0.05610 |
| tierPrice9 | 0.03520 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Tolerance | ?6% |
| Power - Max | 200 mW |
| Impedance (Max) (Zzt) | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65?C ~ 150?C |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | BZT52C15 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 806086 | 1 | 1 | 1 @ $0.29, 10 @ $0.24, 100 @ $0.13, 500 @ $0.08, 1000 @ $0.06 | |
| Win Source | BZT52C15S-TP | 1 | 66000 | 1 | |
| Future Electronics | 6009262 | 3000 | 3000 | ||
 iodParts | BZT52C15S-TP | 1 | 1 | ||
| Digi-Key | 1642550 | 1000 | 1000 | 1 @ $0.29, 10 @ $0.24, 100 @ $0.13, 500 @ $0.08, 1000 @ $0.06 | |
| Digi-Key | 11566521 | 1 | 1 | 1 @ $0.29, 10 @ $0.24, 100 @ $0.13, 500 @ $0.08, 1000 @ $0.06 | |
| Newark | 69R5083 | 1 | 1 | ||
| BZT52C15S-TP | 25 | 25 | 25 @ $0.04, 100 @ $0.03, 500 @ $0.02, 3000 @ $0.02, 12000 @ $0.02 |
