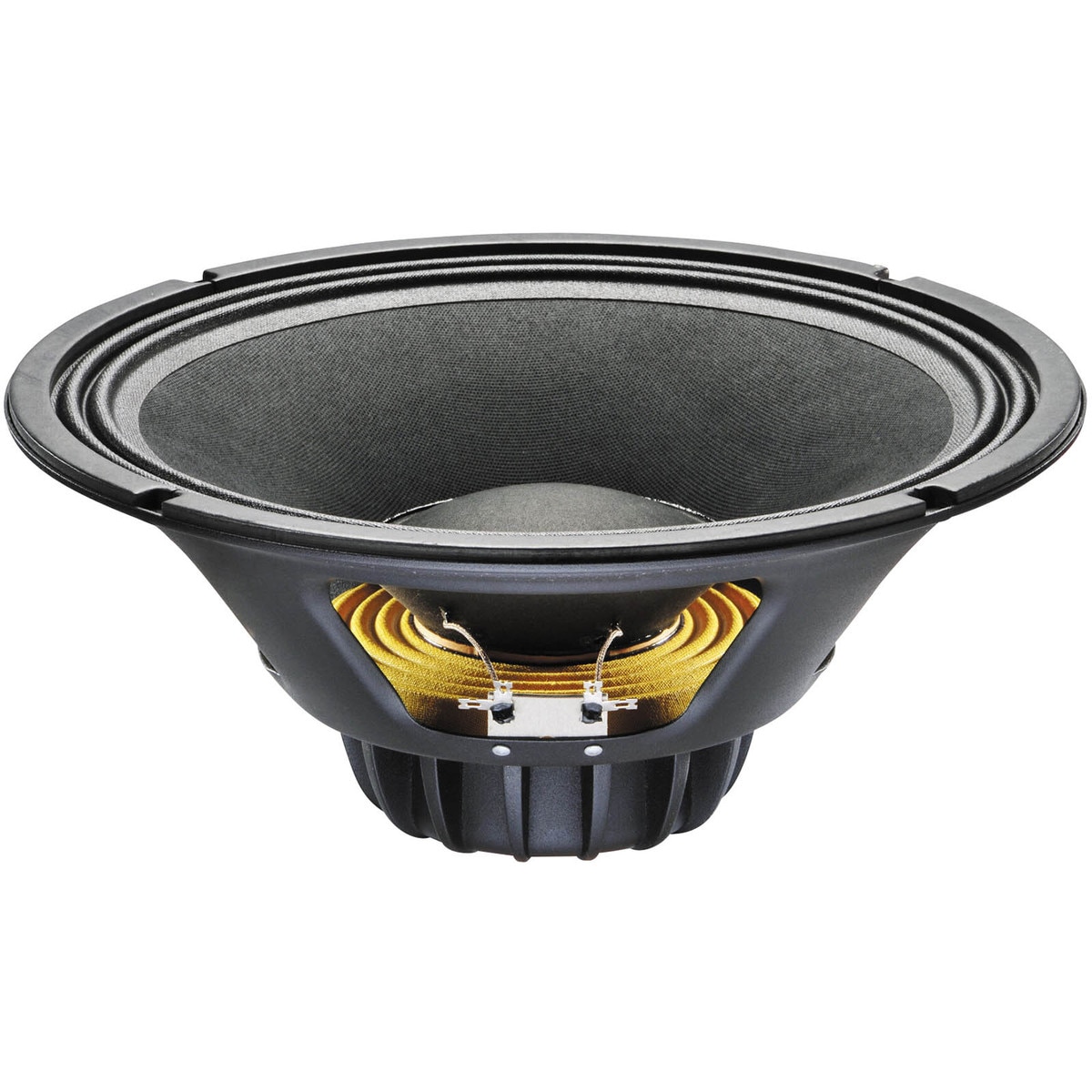

Celestion TN1230 12" Professional Neodymium Woofer 350W

Celestion TN1230 12" Professional Neodymium Woofer 350W - Part Number: 294-1976 by Celestion.

Celestion . TN1230

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCelestion
DimensionUnitinch
Extra Product NameCelestion TN1230 12" Professional Neodymium Woofer 350W
UPC739894548854
Weight6.6
WeightUnitlbs
depth, length5.2
diameter, height, width12.17
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelTN1230
qtyInStockBack-Ordered
SKU, Part Number294-1976
snippetCelestion TN1230 12" Professional Neodymium Woofer 350W - Part Number: 294-1976 by Celestion.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.69
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response50 to 4,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)46.6Hz
DC Resistance (Re)6.09?
Voice Coil Inductance (Le)0.99mH
Mechanical Q (Qms)4.76
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)2.3ft?
Mechanical Compliance of Suspension (Cms)0.16mm/N
BL Product (BL)18.55T?m
Diaphragm Mass Inc Airload (Mms)72.42g
Maximum Linear Excursion (Xmax)3.75mm
Surface Area of Cone (Sd)530.93cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter12.17"
Baffle Cutout Diameter11.2"
Depth5.2"
# Mounting Holes4
Sealed Volume0.625ft?
Sealed F3106.6Hz
Vented Volume1ft?
Vented F367.1Hz
